Setup single sign-on with administrator role with Keycloak

Keycloak is an open source identity and access management tool. It provides user federation, strong authentication, user management, and fine-grained authorization for modern applications and services. In this guide, we integrate the KeyCloak IdP to authenticate users into the Wazuh platform.

There are three stages in the single sign-on integration: 1) KeyCloak configuration

2) Wazuh indexer configuration

3) Wazuh dashboard configuration

1. KeyCloak configuration

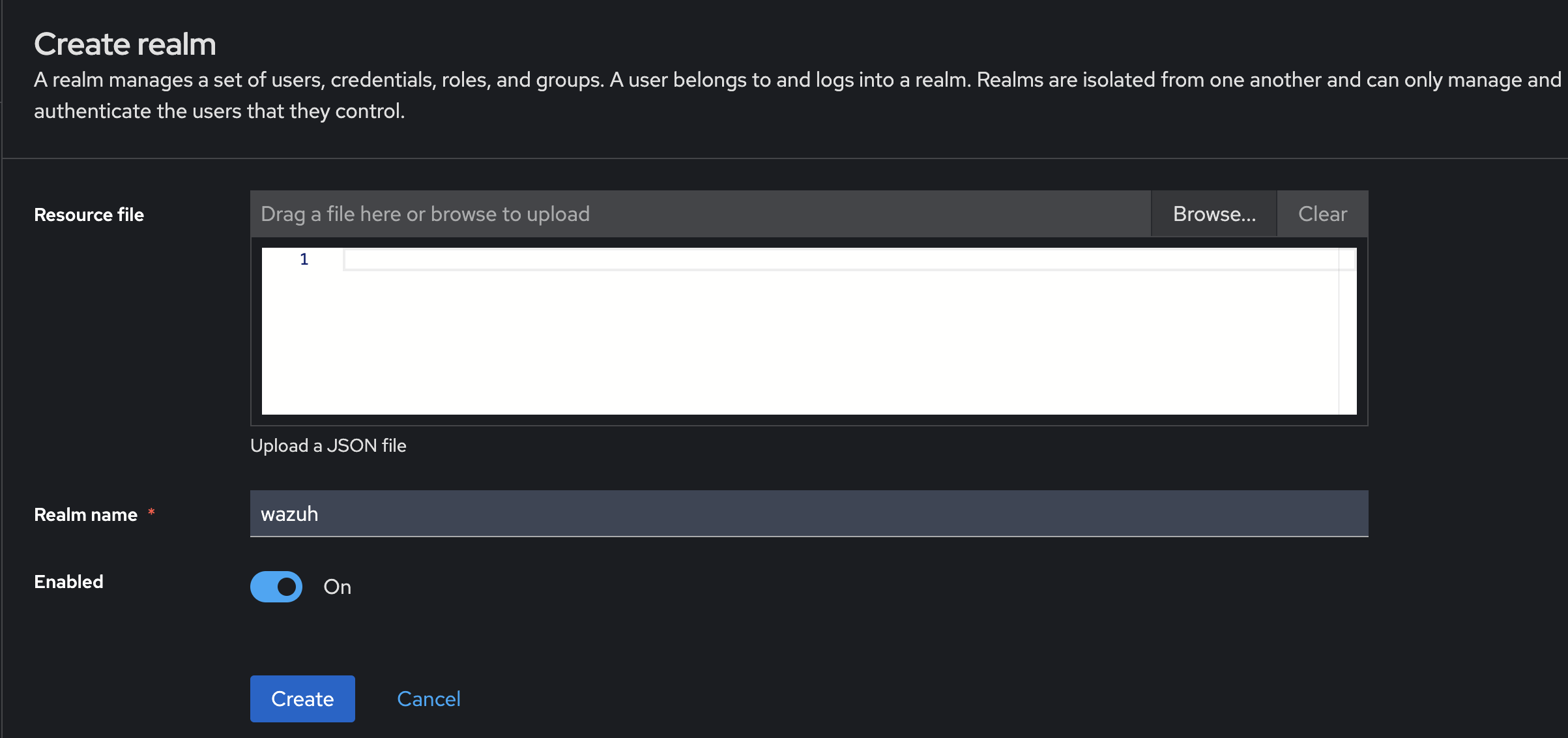

1.1 Create a new realm.

  • Log in to the Keycloak admin console.
  • Expand the master drop-down menu and click Add Realm.
  • Input a name in the Realm name field; this is named Wazuh. Click on Create to apply this configuration.

wazuh-realm

1.2 Create a new client.

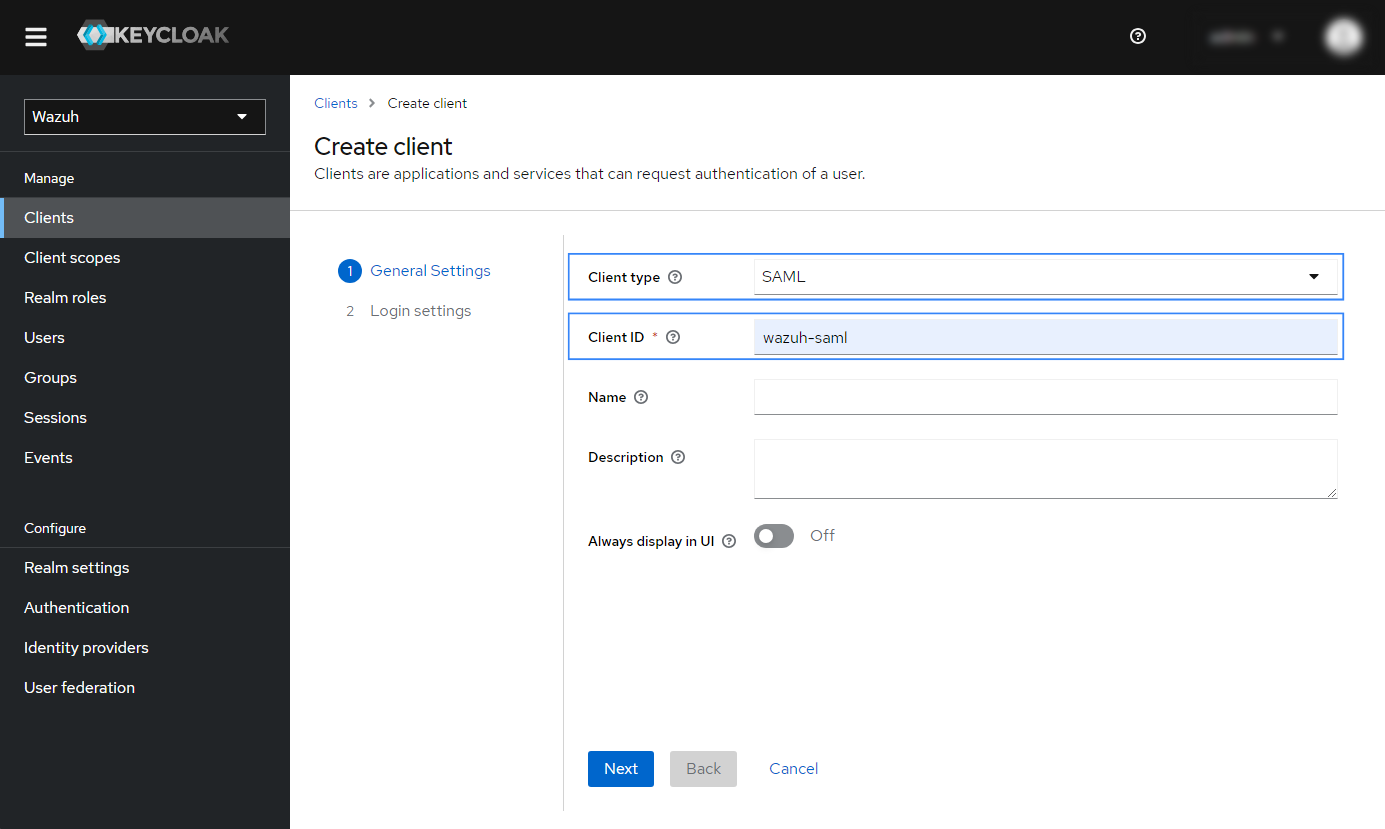

In the newly created realm, navigate to Clients > Create Client and modify the following parameters:

  • Client type: select SAML from the drop-down menu.

  • Client ID: input wazuh-saml. This is the SP (service provider) Entity ID value which will be used later in the config.yml on the Wazuh indexer instance.

You can leave the rest of the values as default. Click Save to apply the configuration.

keycloak-wazuh-client

1.3 Configure client settings.

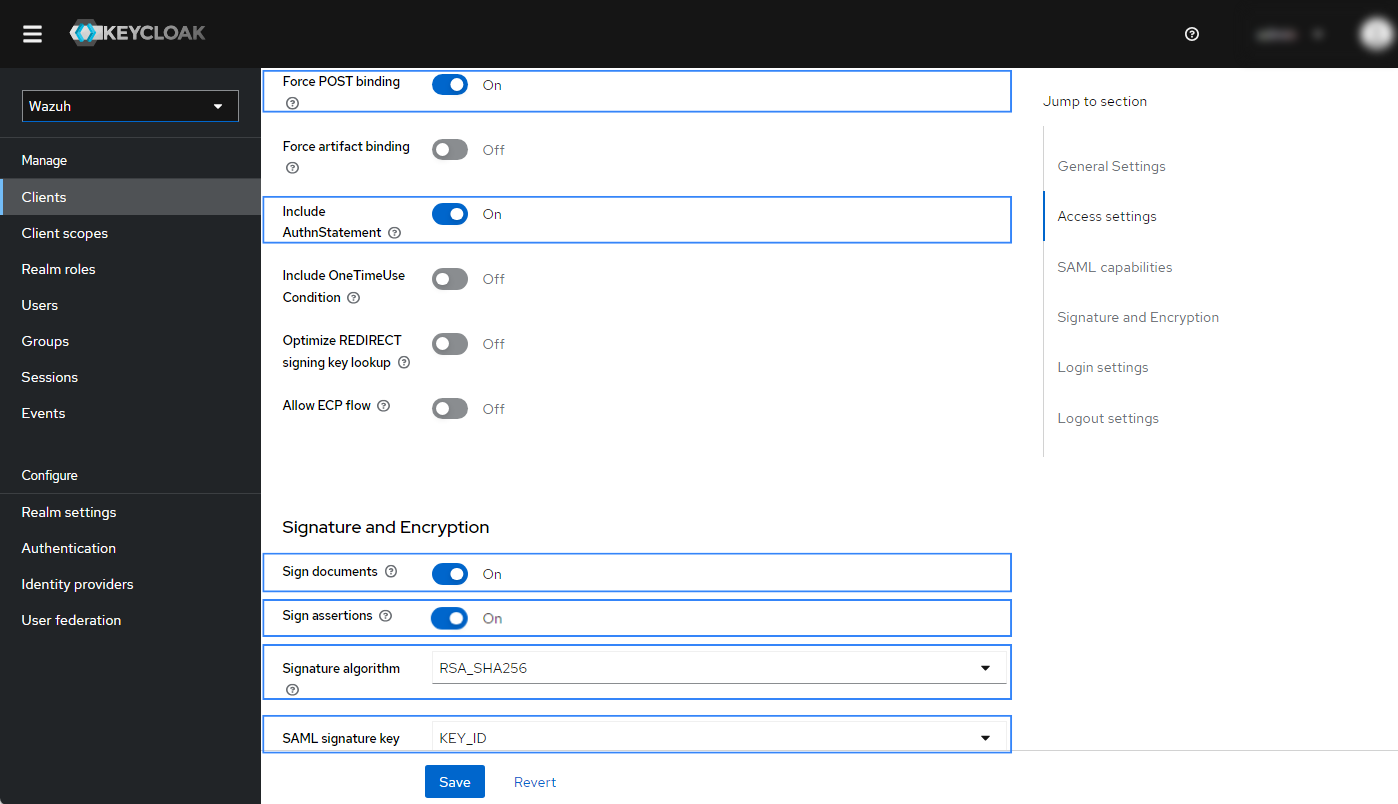

1.3.1 Navigate to Clients > Settings and ensure the Enabled button is turned on.

  • Complete the section with these parameters:
Client ID: wazuh-saml

Name: Wazuh SSO

Valid redirect URIs: https://<WAZUH_DASHBOARD_URL>/*

IDP-Initiated SSO URL name: wazuh-dashboard

Name ID format: username

Force POST binding: ON

Include AuthnStatement: ON

Sign documents: ON

Sign assertions: ON

Signature algorithm: RSA_SHA256

SAML signature key name: KEY_ID

Canonicalization method: EXCLUSIVE

Front channel logout: ON

Replace the <WAZUH_DASHBOARD_URL> field with the corresponding URL of your Wazuh dashboard instance.

client1

client2

client3

You can leave the rest of the values as default. Click Save to apply the configuration.

1.3.2 Navigate to Clients > Keys and set the following parameter:

  • Client signature required: Off client4

1.3.3 Navigate to Clients > Advanced > Fine Grain SAML Endpoint Configuration and complete the section with these parameters:

  • Assertion Consumer Service POST Binding URL: https://<WAZUH_DASHBOARD_URL>/_opendistro/_security/saml/acs/idpinitiated

  • Logout Service Redirect Binding URL: https://<WAZUH_DASHBOARD_URL>

keycloak-advance

You can leave the rest of the values as default. Click Save to apply the configuration.

1.3.4 Create a new role. Navigate to Realm roles > Create role and complete the section with these parameters:

  • Role name: admin.

This will be our backend role in the Wazuh indexer configuration.

1.3.5 Create a new user.

  • Navigate to Users > Add user and fill in the required information.

1.3.6 Set user creds

  • Navigate to Users > Credentials > Set password and input a password for the newly created user. You will use these credentials to log in to the Wazuh dashboard.

1.3.7 Create a new group and assign the user.

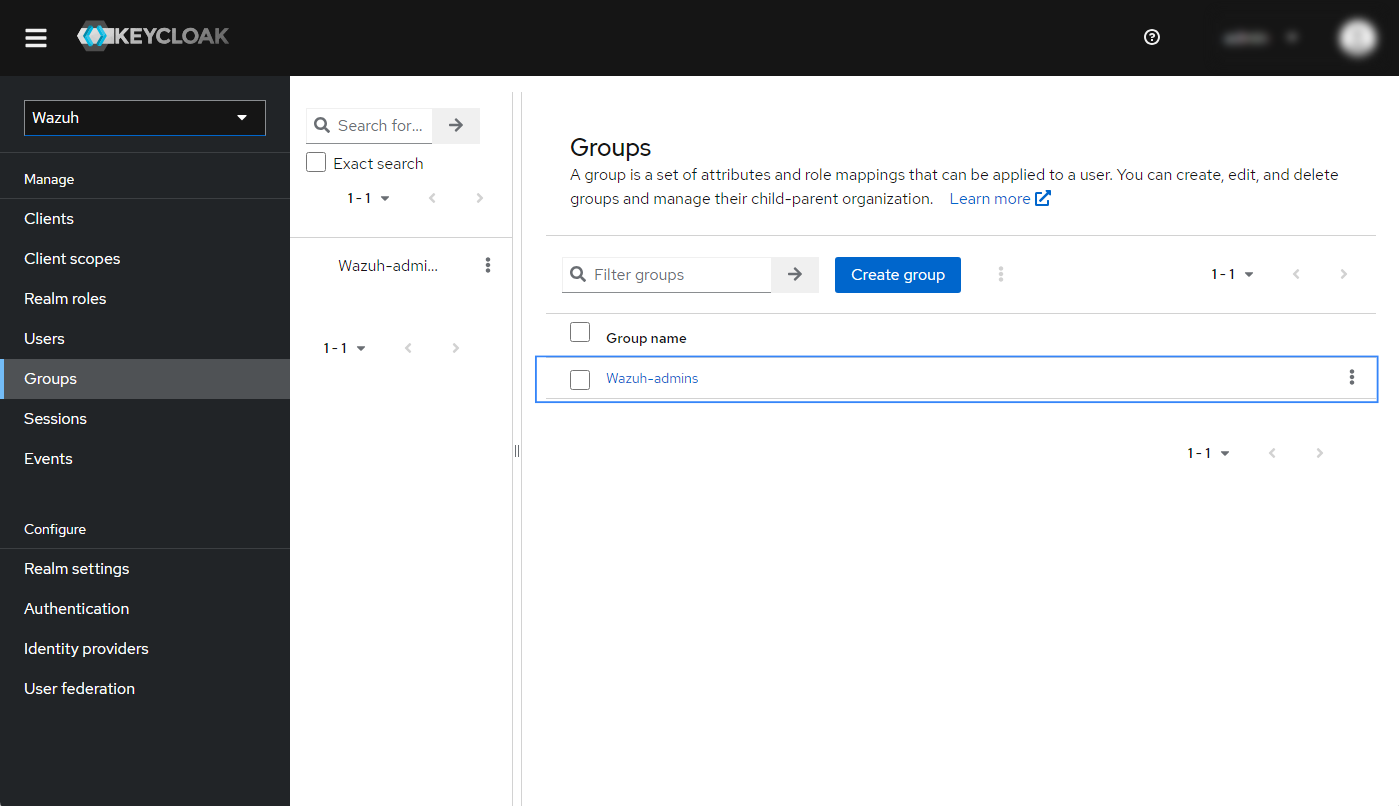

  • Go to Groups > Create group and assign a name to the group. In our case, this is Wazuh-admins.

group

1.3.8 Add members to group

  • Click on the newly created group, navigate to Members > Add member and select the user created in the previous step. Click on Add to add it to the group.

1.3.9 Role mapping

  • In the newly created group details, go to Role Mapping > Assign role and select the admin role created above. Click on Assign to apply the configuration.

1.3.10 Configure protocol mapper.

  • Navigate to Client scopes > role_list > Mappers > Configure a new mapper.
  • Select Role list from the list as seen below: mapper

Fill in the Mapper Configuration:

Mapper type: Role list

Name: wazuhRoleKey. You can use any name here.

Role attribute name: Roles. This will be the roles_key on the Wazuh indexer configuration.

SAML Attribute NameFormat: Basic

Single Role Attribute: On

1.3.11 Note the necessary parameters from the SAML settings of Keycloak.

The parameters already obtained during the integration are:

  • sp.entity_id: wazuh-saml
  • roles_key: Roles
  • kibana_url: https://<WAZUH_DASHBOARD_URL>

To obtain the remaining parameters.

  • Navigate to Clients and select the name of your client. In our case, this is wazuh-saml.

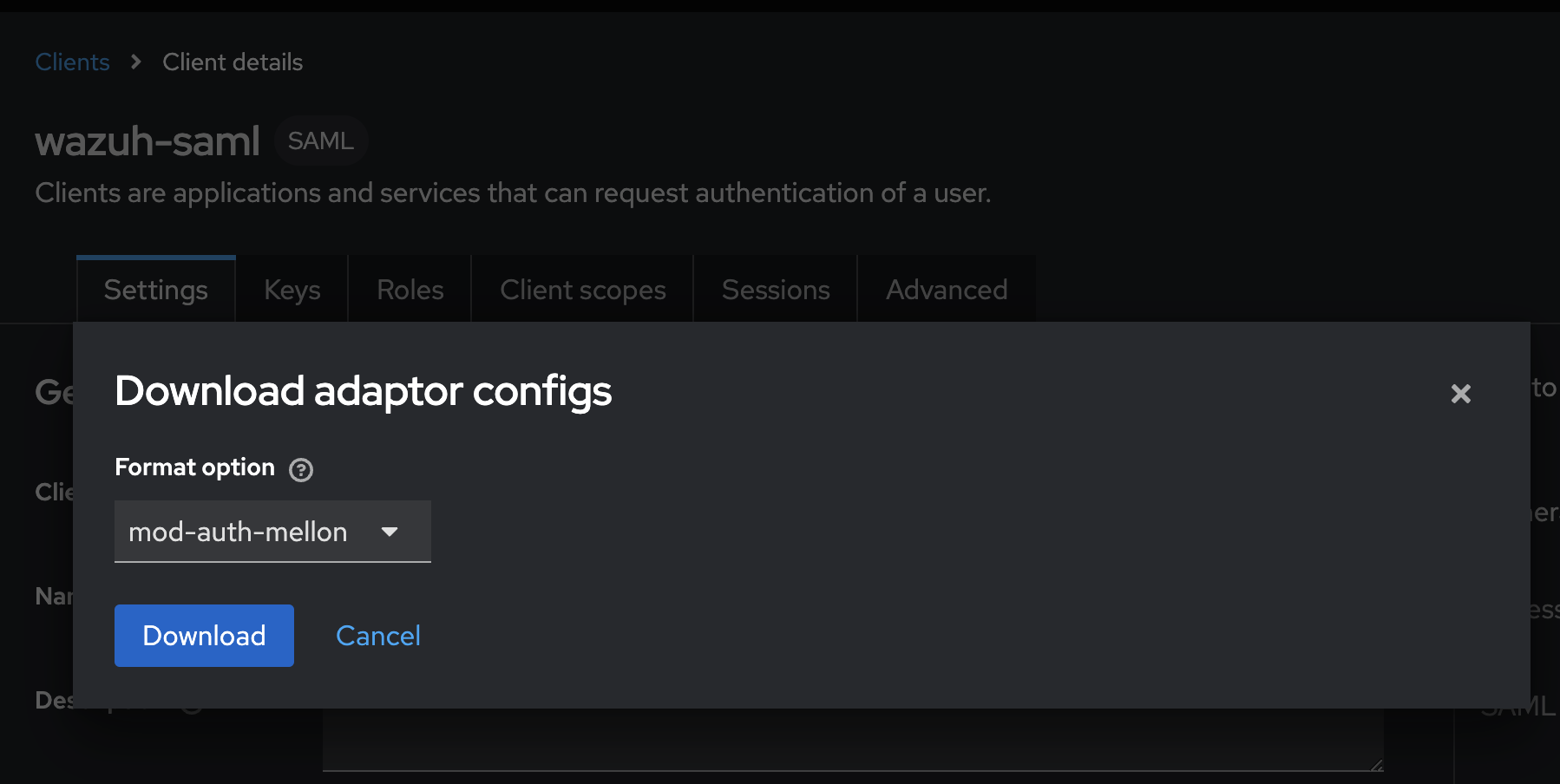

  • Navigate to Action > Download adapter config, and ensure the Format option is Mod Auth Mellon files.
  • Click on Download to download the remaining files.

download-adaptor-config

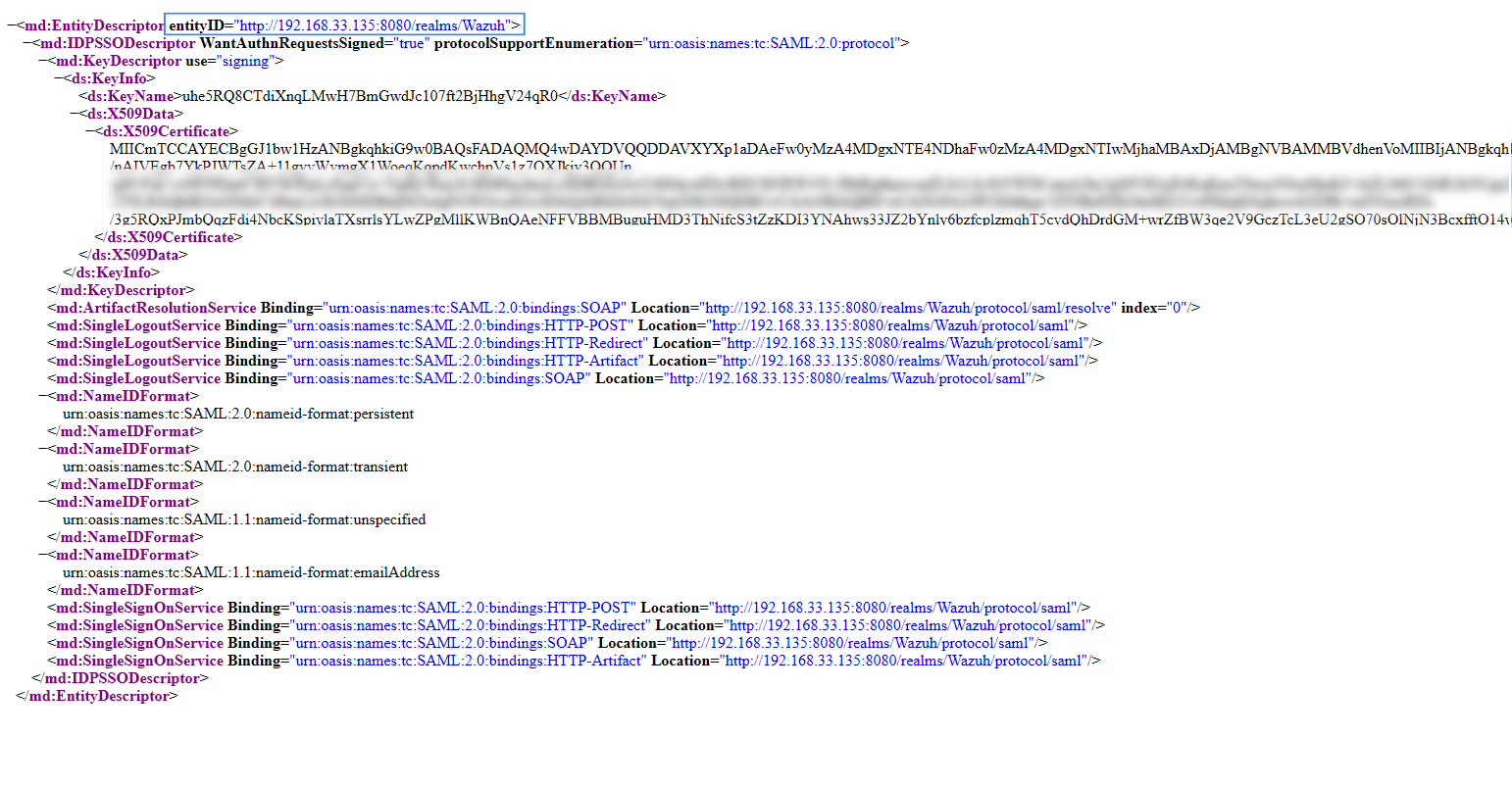

The downloaded files contain the idp.metadata.xml file and the sp.metadata.xml file. The idp.entityID parameter is in the idp.metadata.xml file.

keycloak idp metadata

Keycloak configuration is done now. Now we are moving to Wazuh indexer configuration.

2. Wazuh indexer configuration

Edit the Wazuh indexer security configuration files. We recommend that you back up these files before you carry out the configuration.

2.1 Generate a 64-character long random key using the following command.

openssl rand -hex 32

The output will be used as the exchange_key in the /etc/wazuh-indexer/opensearch-security/config.yml file.

2.2 copy keycloak idp.metadata.xml and sp.metadata.xml into wazuh indexer

Place the idp.metadata.xml and sp.metadata.xml files within the /etc/wazuh-indexer/opensearch-security/ directory. And Set the file ownership to wazuh-indexer using the following command:

# In latest keycloak these files are named as idp-metadata.xml & sp-metadata.xml
# Make sure to rename the file from idp-metadata.xml to idp.metadata.xml & sp-metadata.xml to sp.metadata.xml
chown wazuh-indexer:wazuh-indexer /etc/wazuh-indexer/opensearch-security/idp.metadata.xml
chown wazuh-indexer:wazuh-indexer /etc/wazuh-indexer/opensearch-security/sp.metadata.xml

2.3 Edit the /etc/wazuh-indexer/opensearch-security/config.yml file and change the following values:

  • Set the order in basic_internal_auth_domain to 0, and set the challenge flag to false.

  • Include a saml_auth_domain configuration under the authc section similar to the following:

saml_auth_domain:
   http_enabled: true
   transport_enabled: false
   order: 1
   http_authenticator:
   type: saml
   challenge: true
   config:
      idp:
         metadata_file: '/etc/wazuh-indexer/opensearch-security/idp.metadata.xml'
         entity_id: 'https://keycloak.dev.linuxforall.in/realms/wazuh'
      sp:
         entity_id: wazuh-saml
         metadata_file: '/etc/wazuh-indexer/opensearch-security/sp.metadata.xml'
      kibana_url: https://13.212.5.81
      roles_key: Roles
      exchange_key: '9ba6ddb59cb366cd7f7a6cad344989da2b163f64d1c22ae04e7903886ad74ea7'
   authentication_backend:
   type: noop

Example snippet:

indexer-config-file

Ensure to change the following parameters to their corresponding value:

* idp.metadata_file

* idp.entity_id

* sp.entity_id

* sp.metadata_file

* kibana_url

* roles_key

* exchange_key

2.4 Run the securityadmin script to load the configuration changes made in the config.yml file.

# The -h flag specifies the hostname or the IP address of the Wazuh indexer node. Note that this command uses 127.0.0.1, set your Wazuh indexer address if necessary.

export JAVA_HOME=/usr/share/wazuh-indexer/jdk/ && bash /usr/share/wazuh-indexer/plugins/opensearch-security/tools/securityadmin.sh -f /etc/wazuh-indexer/opensearch-security/config.yml -icl -key /etc/wazuh-indexer/certs/admin-key.pem -cert /etc/wazuh-indexer/certs/admin.pem -cacert /etc/wazuh-indexer/certs/root-ca.pem -h 127.0.0.1 -nhnv

The command output must be similar to the following:

Security Admin v7
Will connect to 192.168.0.100:9200 ... done
Connected as "CN=admin,OU=Wazuh,O=Wazuh,L=California,C=US"
OpenSearch Version: 2.10.0
Contacting opensearch cluster 'opensearch' and wait for YELLOW clusterstate ...
Clustername: wazuh-cluster
Clusterstate: GREEN
Number of nodes: 1
Number of data nodes: 1
.opendistro_security index already exists, so we do not need to create one.
Populate config from /etc/wazuh-indexer/opensearch-security
Will update '/config' with /etc/wazuh-indexer/opensearch-security/config.yml
   SUCC: Configuration for 'config' created or updated
SUCC: Expected 1 config types for node {"updated_config_types":["config"],"updated_config_size":1,"message":null} is 1 (["config"]) due to: null
Done with success

2.5 Map the realm role in Keycloak to the appropriate Wazuh indexer role

  • Edit the /etc/wazuh-indexer/opensearch-security/roles_mapping.yml file and change the following values:

  • Configure the roles_mapping.yml file to map the realm role in Keycloak (admin) to the appropriate Wazuh indexer role; in our case, we map this to the all_access role.

all_access:
  reserved: false
  hidden: false
  backend_roles:
  - "admin"

2.6 Run the securityadmin script to load the configuration changes made in the roles_mapping.yml file.

# The -h flag specifies the hostname or the IP address of the Wazuh indexer node. Note that this command uses both 127.0.0.1, set your Wazuh indexer address if necessary.

export JAVA_HOME=/usr/share/wazuh-indexer/jdk/ && bash /usr/share/wazuh-indexer/plugins/opensearch-security/tools/securityadmin.sh -f /etc/wazuh-indexer/opensearch-security/roles_mapping.yml -icl -key /etc/wazuh-indexer/certs/admin-key.pem -cert /etc/wazuh-indexer/certs/admin.pem -cacert /etc/wazuh-indexer/certs/root-ca.pem -h 192.168.0.100 -nhnv

The command output must be similar to the following:

Security Admin v7
Will connect to 192.168.0.100:9200 ... done
Connected as "CN=admin,OU=Wazuh,O=Wazuh,L=California,C=US"
OpenSearch Version: 2.10.0
Contacting opensearch cluster 'opensearch' and wait for YELLOW clusterstate ...
Clustername: wazuh-cluster
Clusterstate: GREEN
Number of nodes: 1
Number of data nodes: 1
.opendistro_security index already exists, so we do not need to create one.
Populate config from /etc/wazuh-indexer/opensearch-security
Will update '/rolesmapping' with /etc/wazuh-indexer/opensearch-security/roles_mapping.yml
   SUCC: Configuration for 'rolesmapping' created or updated
SUCC: Expected 1 config types for node {"updated_config_types":["rolesmapping"],"updated_config_size":1,"message":null} is 1 (["rolesmapping"]) due to: null
Done with success

3 Wazuh dashboard configuration

3.1 Check the value of run_as in the /usr/share/wazuh-dashboard/data/wazuh/config/wazuh.yml configuration file. If run_as is set to false, proceed to the next step.

hosts:
  - default:
      url: https://192.168.0.100
      port: 55000
      username: wazuh-wui
      password: "<wazuh-wui-password>"
      run_as: false

If run_as is set to true, you need to add a role mapping on the Wazuh dashboard. To map the backend role to Wazuh, follow these steps:

Click ☰ to open the menu on the Wazuh dashboard, go to Server management > Security, and then Roles mapping to open the page.

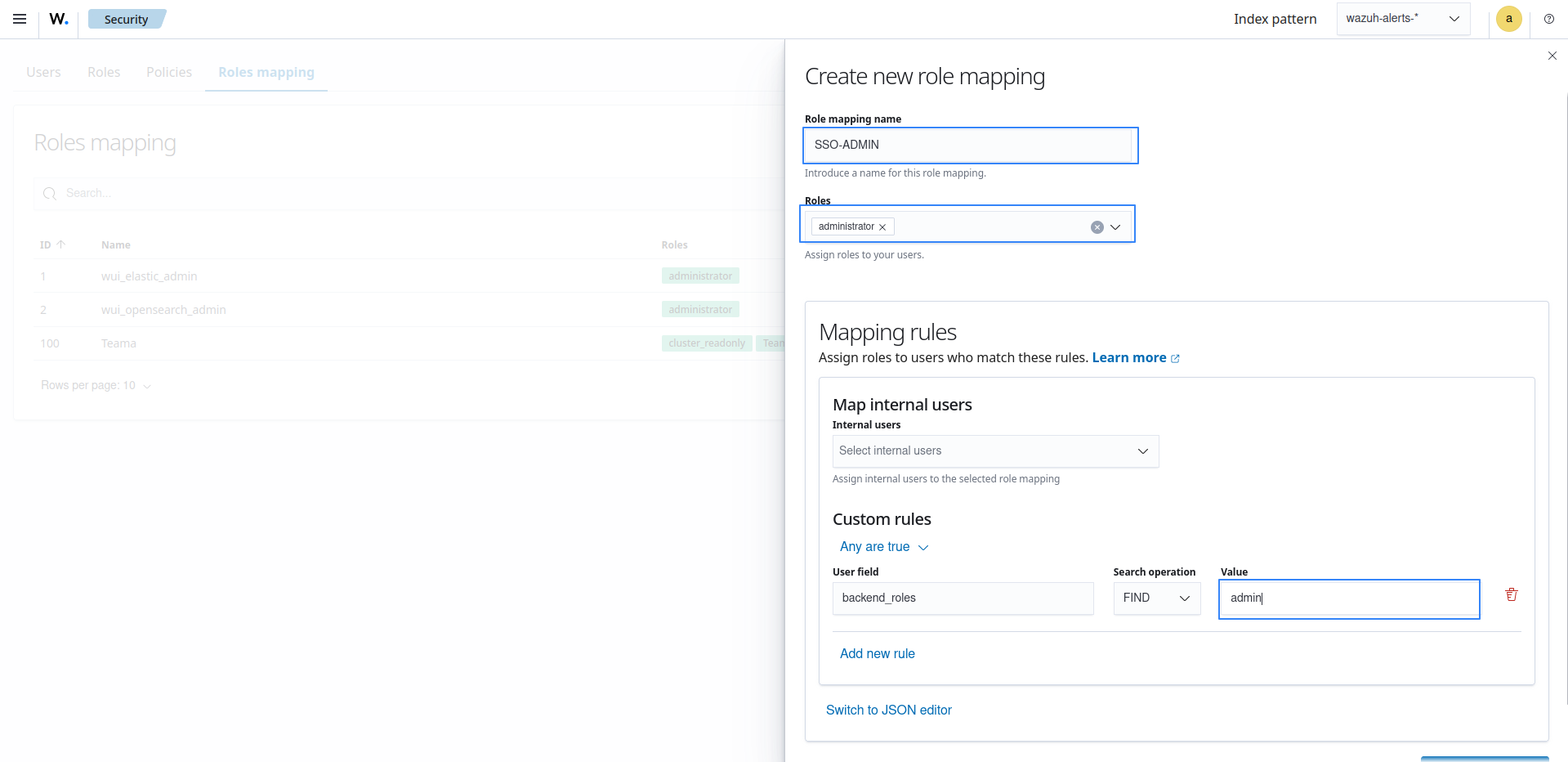

Click Create Role mapping and complete the empty fields with the following parameters:

* Role mapping name: Assign a name to the role mapping.

* Roles: Select `administrator`.

* Custom rules: Click Add new rule to expand this field.

* User field: `backend_roles`

* Search operation: `FIND`

* Value: Assign the value of the realm role in Keycloak configuration. In our case, this is `admin`.

create-new-role-mapping

3.2 Wazuh dashboard configuration

Edit the Wazuh dashboard configuration file. Add these configurations to /etc/wazuh-dashboard/opensearch_dashboards.yml. We recommend that you back up these files before you carry out the configuration.

opensearch_security.auth.type: "saml"
server.xsrf.allowlist: ["/_opendistro/_security/saml/acs", "/_opendistro/_security/saml/logout", "/_opendistro/_security/saml/acs/idpinitiated"]
opensearch_security.session.keepalive: false

3.3 Restart the Wazuh dashboard service using this command:

systemctl restart wazuh-dashboard

Test the configuration. Go to your Wazuh dashboard URL and log in with your Keycloak account.

keycloak setup

Referance

keycloak sso
