🚀 Atlasian Deployment Guide

🎯 Objective

Terraform Pull Request Automation tool.

📋 Prerequisites

An EC2 Instance with Docker and Docker Compose installed (Compose v2 recommended). Upgrade instructions can be found here.
Github Account & a Private Repo
A host with at least 1 CPU cores and 1 GB of RAM.
Basic understanding of Docker commands.
An S3 bucket for terraform state management.
Port 4000 & 22 should be allowed on instance security group.

Atlantis integartion with GitHub

⚙️ Setup Instructions

1. Create a Dockerfile & docker-compose.yaml

mkdir Atlantis
cd Atlantis
vim Dockerfile

Dockerfile

2. docker-compose.yaml

vim docker-compose.yaml

version: '3.8'

services:
  atlantis:
    build:
      context: .
      dockerfile: Dockerfile
    container_name: atlantis
    ports:
      - "4000:4141"
    command: >
      server
      --automerge
      --autoplan-modules
      --gh-user=${GITHUB_USERNAME}
      --gh-token=${GITHUB_TOKEN}
      --repo-allowlist=${REPO_ALLOWLIST}
    environment:
      - GITHUB_USERNAME=${GITHUB_USERNAME}
      - GITHUB_TOKEN=${GITHUB_TOKEN}
      - REPO_ALLOWLIST=${REPO_ALLOWLIST}
    volumes:
      - ./data:/home/atlantis/.aws
    restart: unless-stopped

3. Create .env file & use paste content. change as per require

vim .env

GITHUB_USERNAME=username
GITHUB_TOKEN=<PAT-Token>
REPO_ALLOWLIST=<comma-separated-list-of-allowed-repos>

4. Using IAM Role for AWS Communication

Create an IAM Instance-profile role
Add necessary permissions for S3 & EC2 As we are creating EC2 Instance in this post.
Attach the Instance-profile role to the Instance your docker conatiner of atlasian will be running

# You can check if instance got access to aws
aws sts get-caller-identity

5. Create S3 bucket

Go to aws console & follow the steps to create an s3 bucket. Keep the bucket private Bucket Name in this case test-atlantis

6. Create PAT Token

Go to Create PAT Token
Click on Generate New Token
Choose Generate New Token (classic)

Provide a Name

Expiration

Select scopes

Select repo (Full control of private repositories)

Select admin:repo_hookFull (control of repository hooks)

Click on Active & save

7. Start docker compose

docker compose up -d
docker compose logs

8. Access the Atlasian Page using the Public IP of your Instance on port 4000

http://<Instance-Public-IP>:4000/

9. Create a Webshook for the repo you wanna use Atlasian for

Go to the repo Settings

Choose Webhooks

Add webhook

Payload URL http://:4000/events

Content type application/json

SSL verification Disable if you aren’t using any ssl on Atlasian domain. As we are using IP keep it Disabled.

Which events would you like to trigger this webhook?

Choose Issue comments, Pull request reviews, Pull requests, Pushes

Choose Active & save

10. How to test

Create a develop branch in repo
create main.tf with below details

############ PROVIDER BLOCK ############
provider "aws" {
  region     = "ap-southeast-1"
}
############ SAVING TF STATE FILE #########
terraform {
  backend "s3" {
    bucket  = "test-atlantis" ## update bucket name & region as required
    key     = "atlantis/terraform.tfstate"
    region  = "ap-southeast-1"
  }
}
################# EC2 INSTANCE CREATION #########
data "aws_ami" "ubuntu" {
  most_recent = true

  filter {
    name   = "name"
    values = ["ubuntu/images/hvm-ssd/ubuntu-focal-20.04-amd64-server-*"]
  }

  filter {
    name   = "virtualization-type"
    values = ["hvm"]
  }

  owners = ["099720109477"]
}

resource "aws_instance" "web" {
  ami           = data.aws_ami.ubuntu.id
  instance_type = "t2.micro"

  tags = {
    Name = "terraform-atlantis"
  }
}

commit changes & create PR

To push the code to GitHub

git add *
git commit -m "Create EC2 Instance"
git checkout -b develop
git push origin develop

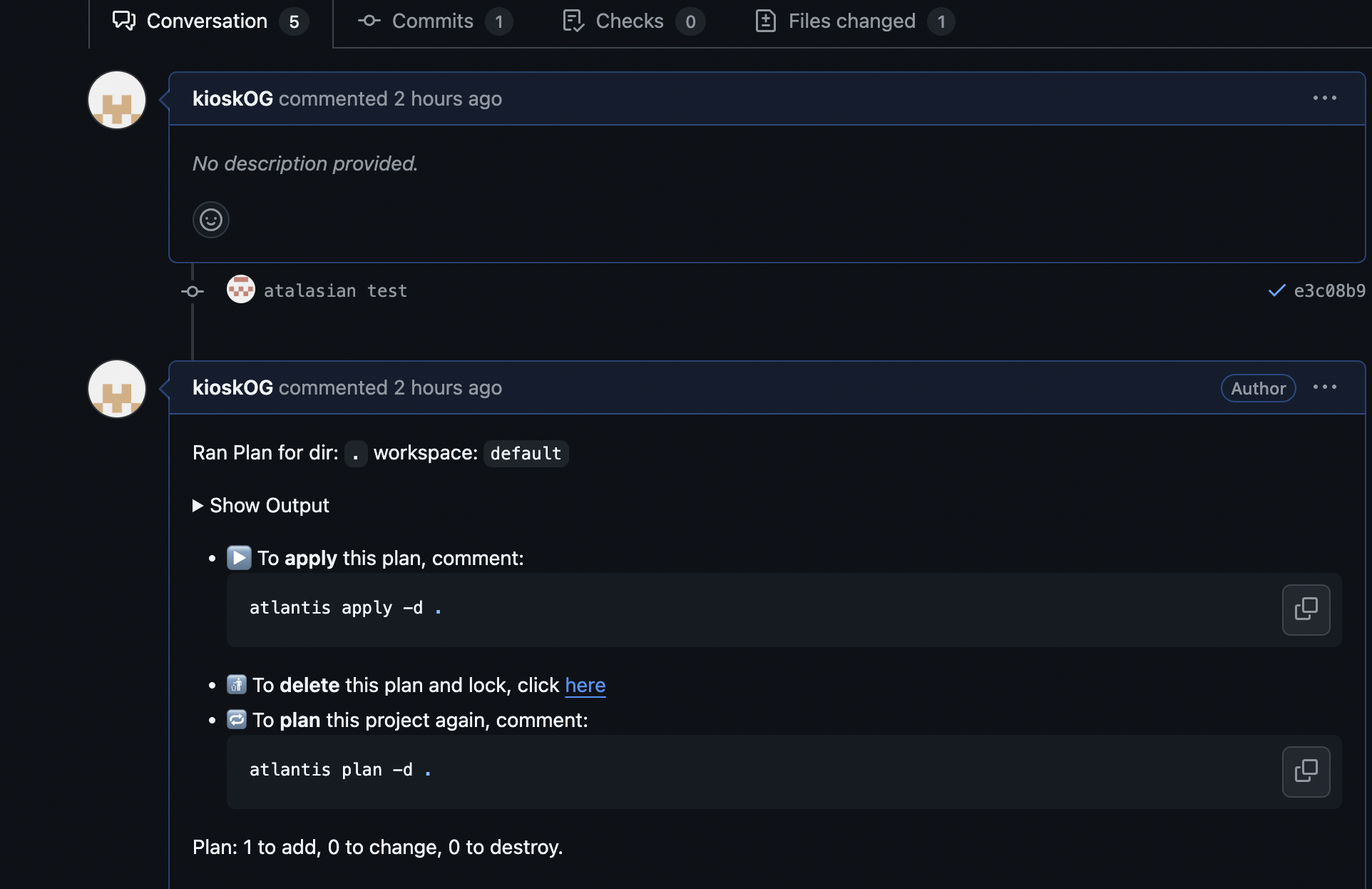

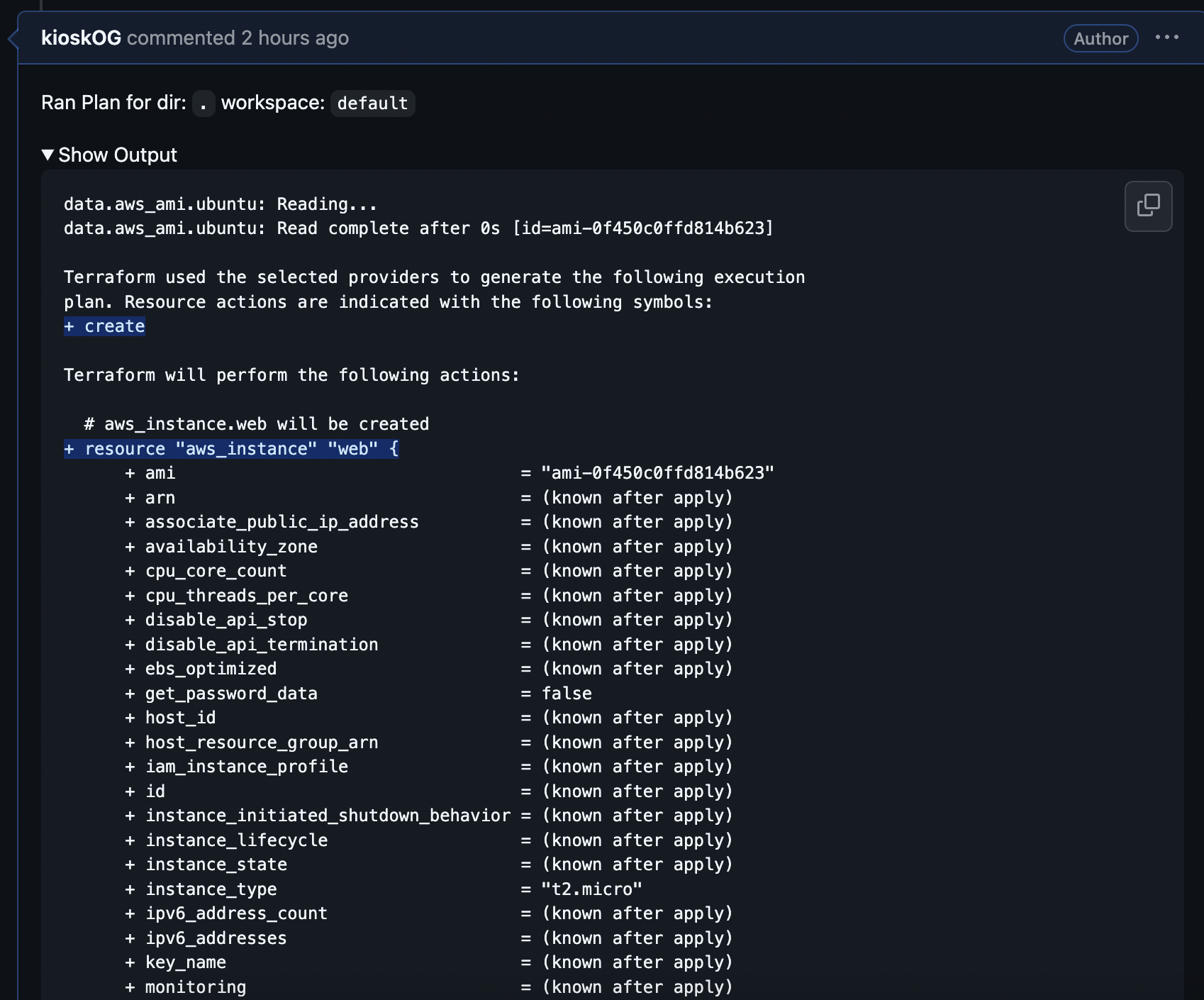

Once done you will see plan in PR

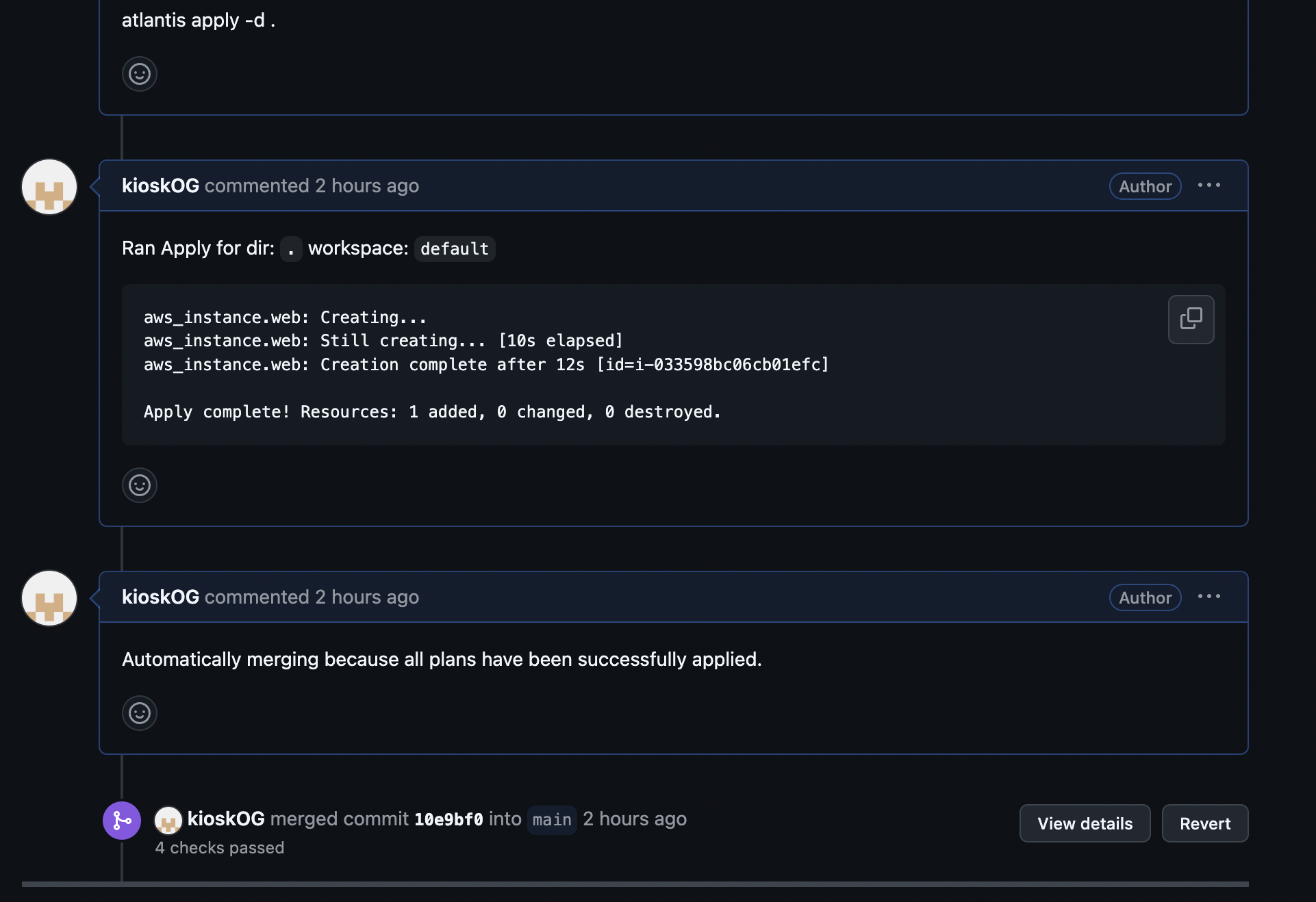

When you comment atlantis apply -d . terraform apply happens.

If Wanna Run Atlantis as Docker contianer Without docker-compose

docker run -itd -p 4000:4141 --name atlantis atlantis server --automerge --autoplan-modules --gh-user=<github-account-username> --gh-token=<github-usr-access-token> --repo-allowlist=<list of allowed repos>

### Example for above command with single repository
docker run -itd -p 4000:4141 --name atlantis atlantis server --automerge --autoplan-modules --gh-user=jerinrathnam --gh-token=ghp_lj8nNeckni0N#C*54urnDBUCc0h3f#BFU --repo-allowlist=github.com/easydeploy-cloud/terraform-atlantis

### Example for above command with all repositories in a GitHub account or organization
docker run -itd -p 4000:4141 --name atlantis atlantis server --automerge --autoplan-modules --gh-user=jerinrathnam --gh-token=nNeckni0N#C*54urnDBUCc0h3f#BFU --repo-allowlist=github.com/easydeploy-cloud/*

💡 Using IAM User for AWS Communication

## To ssh into the Atlantis Docker Container
docker exec -it atlantis /bin/sh
## To add AWS credentials directly
aws configure

## To edit the aws credentials file
vi /home/atlantis/.aws/credentials

### Add the following content into the credentials file
[default]
aws_access_key_id = <ACCESS-KEY>
aws_secret_access_key = <SECRET-KEY>

### Replace the following values in the above code
**ACCESS-KEY:** Access key ID of the AWS IAM user

**SECRET-KEY:** Secret Access key ID of the AWS IAM user

Refrences:-

youtube video

Official doc

Atlantis Commands

Atlantis commands reference

atlantis plan -d . ⇨ to get a plan of the terraform code

atlantis apply -d . ⇨ to apply the terraform code
