🔐 Vault Docker Setup along with Basics of vault & Dynamic creds generate for mysql(RDS) 🔐

What is Vault?

Secure, store, and tightly control access to tokens, passwords, certificates, encryption keys for protecting secrets, and other sensitive data using a UI, CLI, or HTTP API.

vault

🚀 Vault setup with http using docker

📋 Prerequisites

Docker and Docker Compose installed.
Basic understanding of Docker commands.

1️⃣ docker-compose file.

  version: '3.3'
  services:
    vault:
      image: hashicorp/vault
      container_name: vault-new
      environment:
        VAULT_ADDR: "http://vault-poc.dev.linuxforall.in:8200"
        VAULT_API_ADDR: "http://vault-poc.dev.linuxforall.in:8200"
        VAULT_ADDRESS: "http://vault-poc.dev.linuxforall.in:8200"
        # VAULT_UI: true
        # VAULT_TOKEN:
      ports:
        - "8200:8200"
        - "8201:8201"
      restart: always
      volumes:
        - ./logs:/vault/logs/:rw
        - ./data:/vault/data/:rw
        - ./config:/vault/config/:rw
        - ./file:/vault/file/:rw
      cap_add:
        - IPC_LOCK
      entrypoint: vault server -config /vault/config/config.hcl

2️⃣ /config/config.hcl

    ui = true
    disable_mlock = "true"

    storage "raft" {
      path    = "/vault/data"
      node_id = "node1"
    }

    listener "tcp" {
      address = "[::]:8200"
      tls_disable = "true"
    }

    api_addr = "http://vault-poc.dev.linuxforall.in:8200"
    cluster_addr = "http://vault-poc.dev.linuxforall.in:8201"

3️⃣ Start docker compose & exec into container

docker-compose up -d
docker exec -it vault-new /bin/sh

4️⃣ Once logged into the vault container, Initialize vault

vault operator init

Save the unseal keys and root token securely. They will be required for unsealing and logging in.**

vault-operator-init

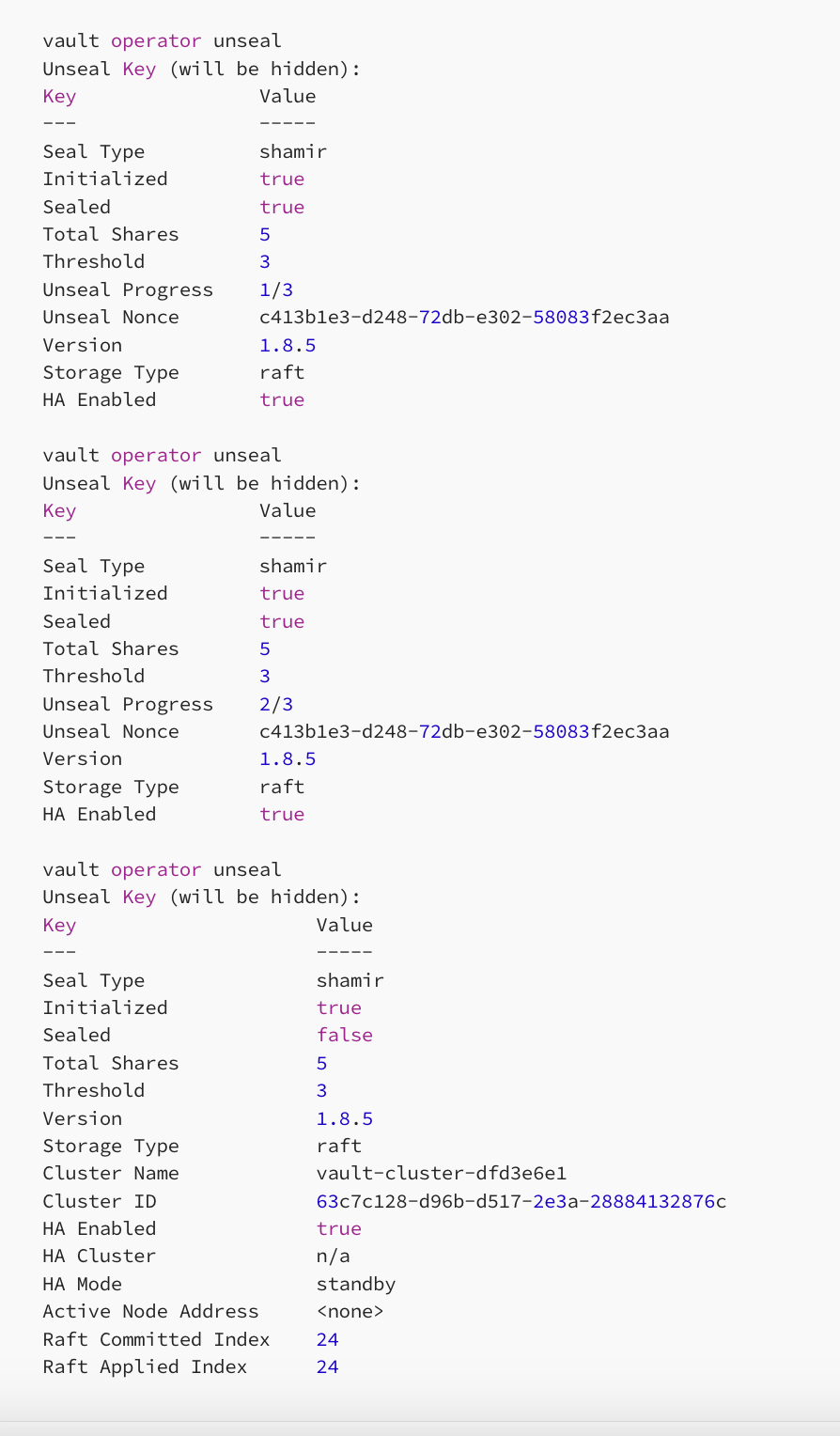

5️⃣ While still in the vault container, execute the command below thrice with any of the 3 unseal keys. Please observe the below logs

vault operator unseal

vault-operator-unseal

6️⃣ Exit the docker-container and install vault CLI if not done already in local system

sudo apt update && sudo apt install gpg wget
wget -O- https://apt.releases.hashicorp.com/gpg | sudo gpg --dearmor -o /usr/share/keyrings/hashicorp-archive-keyring.gpg
gpg --no-default-keyring --keyring /usr/share/keyrings/hashicorp-archive-keyring.gpg --fingerprint
echo "deb [arch=$(dpkg --print-architecture) signed-by=/usr/share/keyrings/hashicorp-archive-keyring.gpg] https://apt.releases.hashicorp.com $(lsb_release -cs) main" | sudo tee /etc/apt/sources.list.d/hashicorp.list
sudo apt update && sudo apt install vault

export VAULT_ADDR="http://vault-poc.dev.linuxforall.in:8200"

vault login

🔐 Vault setup with https using docker

1️⃣ docker-compose file.

version: '3.3'
services:
  vault:
    image: hashicorp/vault
    container_name: vault-https
    environment:
      VAULT_ADDR: "https://vault2-poc.dev.linuxforall.in:8300"
      VAULT_API_ADDR: "https://vault2-poc.dev.linuxforall.in:8300"
      VAULT_ADDRESS: "https://vault2-poc.dev.linuxforall.in:8300"
      # VAULT_UI: true
      # VAULT_TOKEN:
    ports:
      - "8300:8200"
      - "8301:8201"
    restart: always
    volumes:
      - ./logs:/vault/logs/:rw
      - ./data:/vault/data/:rw
      - ./config:/vault/config/:rw
      - ./certs:/certs/:rw
      - ./file:/vault/file/:rw
    cap_add:
      - IPC_LOCK
    entrypoint: vault server -config /vault/config/config.hcl

2️⃣ config/config.hcl

ui = true
disable_mlock = "true"

storage "raft" {
  path    = "/vault/data"
  node_id = "node1"
}

listener "tcp" {
  address = "[::]:8200"
  tls_disable = "false"
  tls_cert_file = "/certs/cert.crt"
  tls_key_file  = "/certs/cert.key"
}

api_addr = "https://vault2-poc.dev.linuxforall.in:8300"
cluster_addr = "https://vault2-poc.dev.linuxforall.in:8301"

3️⃣ Start docker compose & exec into container

docker-compose up -d
docker exec -it vault-new /bin/sh

4️⃣ Notes for HTTPS Setup

Follow the same steps as the HTTP setup for the remaining configuration.**

If you’re using self-signed certificates, use a browser instead of running the vault operator init command inside the container. The browser will guide you through the necessary prompts to proceed with initialization.

Common Error with Self-Signed Certificates

When using self-signed certificates, you may encounter the following error:

Get "https://vault2-poc.dev.linuxforall.in:8300/v1/sys/seal-status": tls: failed to verify certificate: x509: certificate signed by unknown authority

📚 Some Basics of Hashicorp Vault

Vault: Read, List, Write, and Delete Secrets

This guide covers the fundamental operations for managing secrets in Vault, including enabling secret engines, writing, reading, listing, and deleting secrets.

📌 Enable a Secret Engine

To use a new path in Vault, you must enable it under a secret engine:

vault secrets enable -path=my kv

✏️ Write Secrets

Store a key-value pair in Vault:
vault kv put my/path key-1=value-1

📖 Read Secrets
Retrieve the stored secret:
```
vault kv get my/path
```

Retrieve the secret in JSON format:
vault kv get my/path

📂 List Secrets
List all secret engines:
```
vault secrets list
```
🗑️ Delete Secrets
Remove a specific secret:
```
vault kv delete my/path
```

📋 Examples

1️⃣ Create or Update a Secret
Add or update the key foo in the secret mount with the value bar=baz:
```
vault kv put -mount=secret foo bar=baz
```
2️⃣ Read a Secret
Retrieve the value of the key foo:
```
vault kv put -mount=secret foo bar=baz
```
3️⃣ Get Metadata
Retrieve metadata for the key foo:
```
vault kv metadata get -mount=secret foo
```
4️⃣ Read a Specific Version
Retrieve a specific version of the key foo:
```
vault kv metadata get -mount=secret foo
```

🔐 Vault Secret Engine Operations

1️⃣ List Secret Engines
```
vault secrets list
```
2️⃣ Enable a Secret Engine
Enable a secret engine at a custom path:
```
vault secrets enable -path=aws aws
```
3️⃣ Disable a Secret Engine
Disable a secret engine:
```
vault secrets disable aws
```

🎉 You’re All Set!

You now know how to enable secret engines, write, read, list, and delete secrets in Vault. Use these commands to manage secrets securely and effectively. 🏆

Setup Dynamic creds for mysql(RDS)

This plugin has a few different instances built into vault, each instance is for a slightly different MySQL driver. The only difference between these plugins is the length of usernames generated by the plugin as different versions of mysql accept different lengths.

The available plugins are:

mysql-database-plugin
mysql-aurora-database-plugin
mysql-rds-database-plugin
mysql-legacy-database-plugin

Enable Secrets Engines for Database

Vault secrets enable database

mysql RDS connection configure

vault write database/config/mysql \
  plugin_name=mysql-database-plugin \
  connection_url=":@tcp(iam-rds.cnca5n9dcmn4.ap-southeast-1.rds.amazonaws.com:3306)/" \
  allowed_roles="readonly" \
  username="admin" \
  password="strong_password" \
  tls_ca_file="ap-southeast-1-bundle.pem"

mysql readonly role configure

vault write database/roles/readonly \
    db_name=mysql \
    creation_statements="CREATE USER ''@'%' IDENTIFIED BY '';GRANT SELECT ON *.* TO ''@'%';" \
    default_ttl="1h" \
    max_ttl="24h"

Read database config & roles details about

vault read database/config/iamrds
vault read database/roles/readonly

Generate new temporary credentials

vault read database/creds/readonly
