🚀 Uptime-Kuma Deployment Guide

🎯 Objective

Uptime Kuma is an easy-to-use self-hosted monitoring tool.

📋 Prerequisites

Docker and Docker Compose installed (Compose v2 recommended). Upgrade instructions can be found here.
A host with at least 1 CPU cores and 1 GB of RAM.
Basic understanding of Docker commands.

⭐ Features

Monitoring uptime for HTTP(s) / TCP / HTTP(s) Keyword / HTTP(s) Json Query / Ping / DNS Record / Push / Steam Game Server / Docker Containers
Fancy, Reactive, Fast UI/UX
Notifications via Telegram, Discord, Gotify, Slack, Pushover, Email (SMTP), and 90+ notification services, click here for the full list
20-second intervals
Multi Languages
Multiple status pages
Map status pages to specific domains
Ping chart
Certificate info
Proxy support
2FA support

⚙️ Setup Instructions

mkdir uptime-kuma
vim docker-compose.yaml

name: uptime-kuma

services:
  uptime-kuma:
    container_name: uptime-kuma
    hostname: uptime-kuma
    image: louislam/uptime-kuma:latest
    network_mode: "host"
    volumes:
      - uptime-kuma:/app/data
    restart: always
    # ports:
    #  - '3001:3001'

volumes:
  uptime-kuma:

File Systems like NFS (Network File System) are NOT supported. Please map to a local directory or volume.

If you want to limit exposure to localhost (without exposing port for other users or to use a reverse proxy), you can expose the port like this:
docker run -d --restart=always -p 127.0.0.1:3001:3001 -v uptime-kuma:/app/data --name uptime-kuma louislam/uptime-kuma:1

Uptime Kuma is now running on http://0.0.0.0:3001

http://<host-ip>:3001
http://<host-ip>:3001/metrics

Track Docker container using uptime kuma

Create a file at below location & paste the content

/etc/docker/daemon.json

{"hosts": ["tcp://0.0.0.0:2375", "unix:///var/run/docker.sock"]}

Create another file if not present at below loaction

/etc/systemd/system/docker.service.d/override.conf

[Service]
ExecStart=
ExecStart=/usr/bin/dockerd --config-file /etc/docker/daemon.json

Restart the daemon & docker service systemctl daemon-reload systemctl restart docker

Restarting docker will restart all the containers all well.

Real-time Uptime Monitoring with Uptime Kuma and Grafana

Introduction

Integrating Uptime Kuma monitoring into your Grafana dashboard offers a powerful synergy, allowing you to consolidate real-time uptime data alongside other critical metrics. By seamlessly embedding Uptime Kuma’s monitoring capabilities into Grafana, you unlock a comprehensive view of your system’s health and performance in a single unified interface. This integration empowers you to make informed decisions swiftly, enhancing your ability to proactively manage and optimize service uptime effortlessly. Let’s delve into the process of adding Uptime Kuma monitoring to your Grafana dashboard for a holistic monitoring experience.

prerequisites

Integrating Uptime Kuma monitoring into your Grafana dashboard offers a powerful synergy, allowing you to consolidate real-time uptime data alongside other critical metrics.

Uptime Kuma Installed and Running: Have Uptime Kuma set up and operational, either via Docker or the non-Docker method.

Grafana Installed and Configured: Ensure Grafana is installed and properly configured to create and manage dashboards.

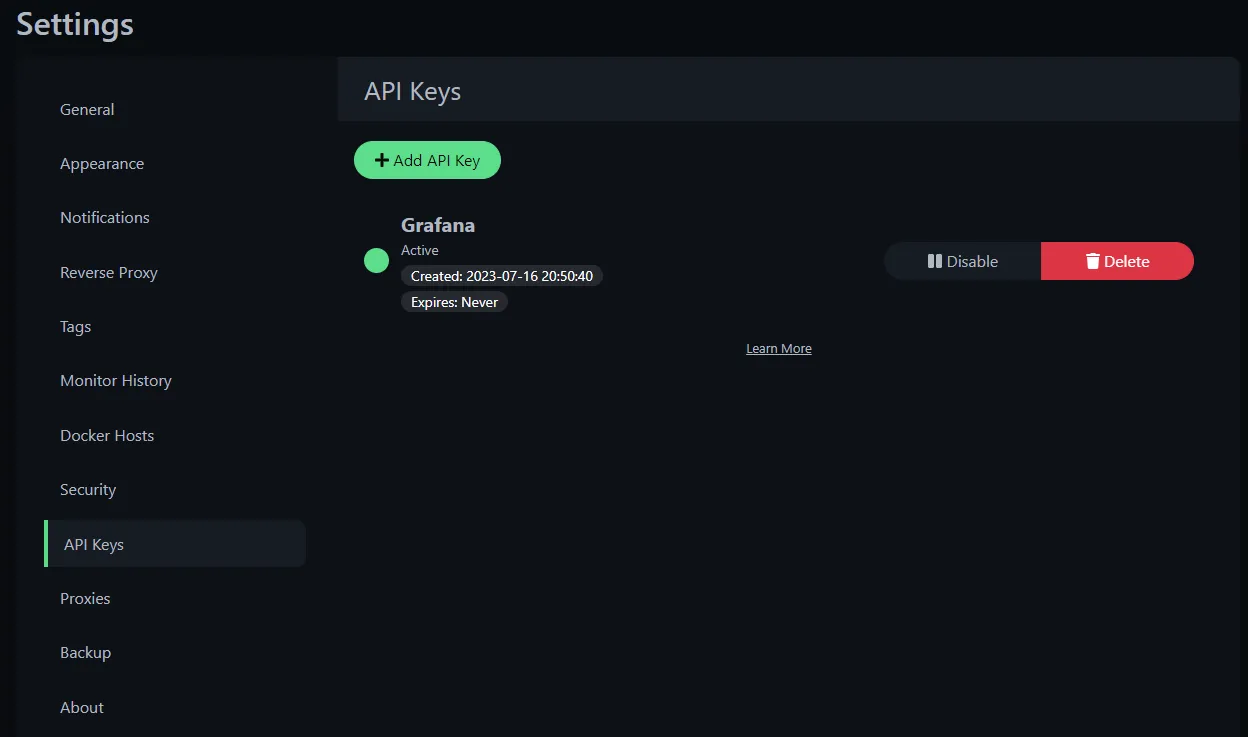

Access Credentials: Have the necessary access credentials or APIs ready for both Uptime Kuma and Grafana for seamless integration. This can be done under API key in Uptime Kuma Settings:

Apikey

Prometheus and Grafa configuration

Step 1. Verify we can access the Uptime Kuma metrics

Before we can start scrapping the metrics we need to verify that we can access the Uptime Kuma “/metrics”. to do that, open the browser and enter your Uptime Kuma server, ending with “/metrics”:

https://<hostip>:3001/metrics

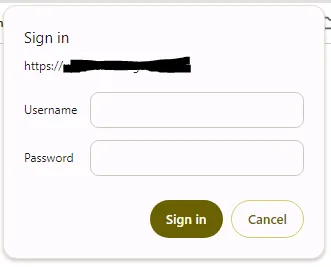

You should get a Basic Auth screen:

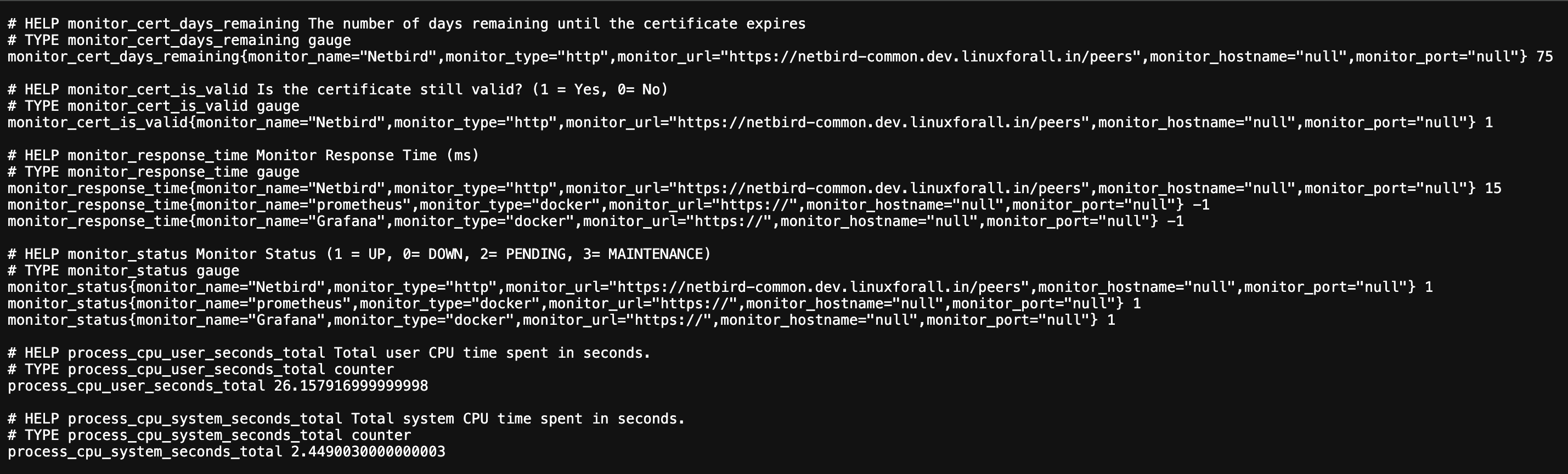

Leave the Username empty or pass the same username which you created when first time created a user and the password is the Uptime Kuma API Key you generated and click on “Sign in”. if the password is correct you should see a screen that looks like the following:

metrics-page

Step 2. Configure Prometheus scrapper

After we confirm that we can access the Uptime Kuma metrics, It’s time to configure our Prometheus scrapper. For that, open your Prometheus configuration file and add the following text:

- job_name: "uptime Kuma"
    scrape_interval: 30s
    scheme: http
    static_configs:
      - targets: ["192.168.0.185:3001"]
        labels:
          host: 'UptimeKuma'
    metrics_path: "/metrics"
    basic_auth:
      password: uk1_rV7hmbnlWSZ8UcV78bZR2m9eCU0N0OFSBi4Qi4wF

Don’t forget to replace the targets and passwords with your own. Save the file and restart your Prometheus instance.

Step 3: Setting up the Grafana dashboard

Grafana allows you to import dashboards using JSON files. This can be helpful for sharing dashboards or moving them between instances. Here are the steps to import a Grafana dashboard from a JSON file.

Open your web browser and navigate to your Grafana instance.
If you’re not already logged in, enter your Grafana username and password to log in.
In the Grafana sidebar, click on the “Dashboards” icon (it looks like a bar chart).
Import the Dashboard JSON File:

In the top menu of the dashboard, click on the “Import” button. It may be represented as an arrow pointing upwards. You can select between three existing dashboards or create one of your own

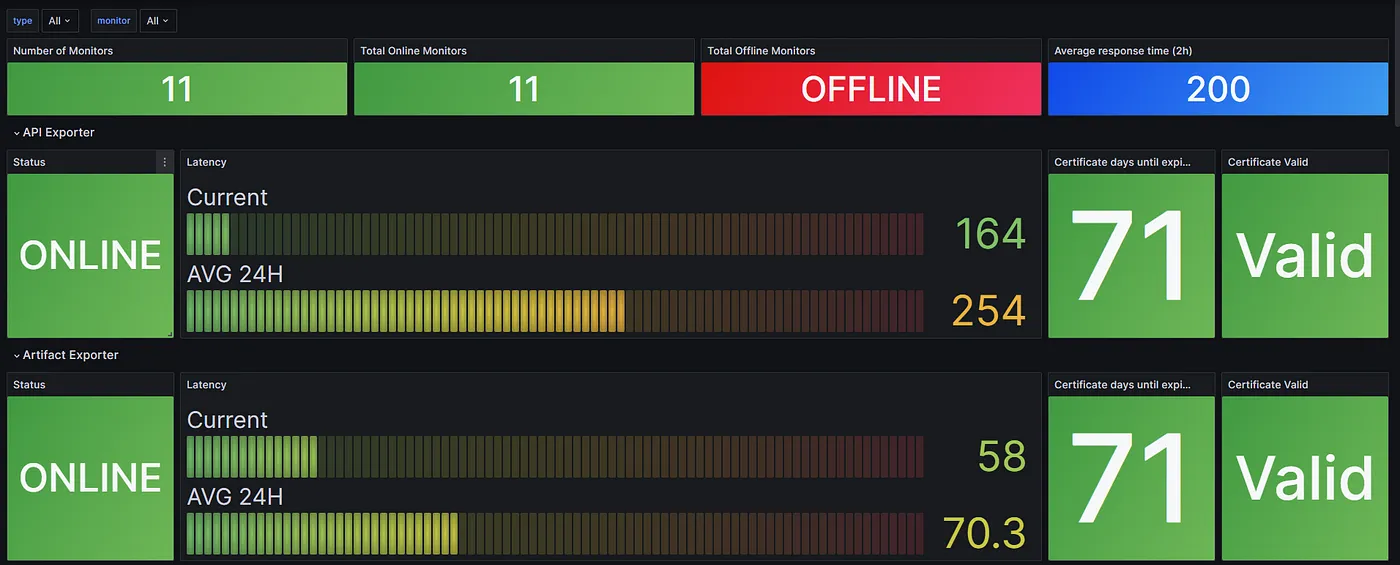

uptime kuma

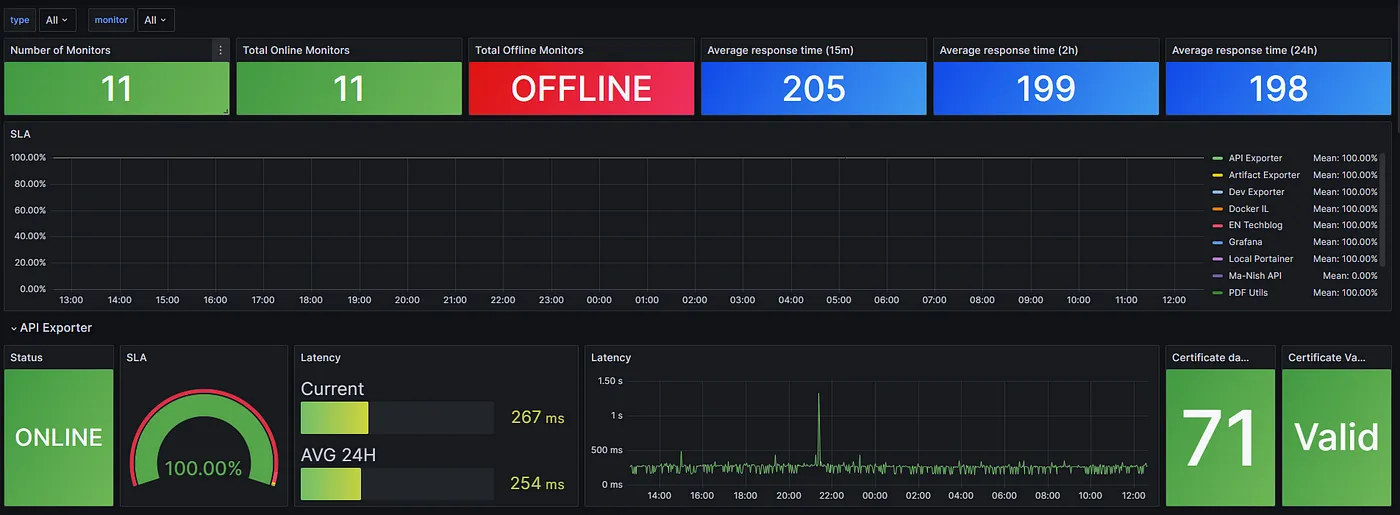

Uptime Kuma — SLA/Latency/Certs

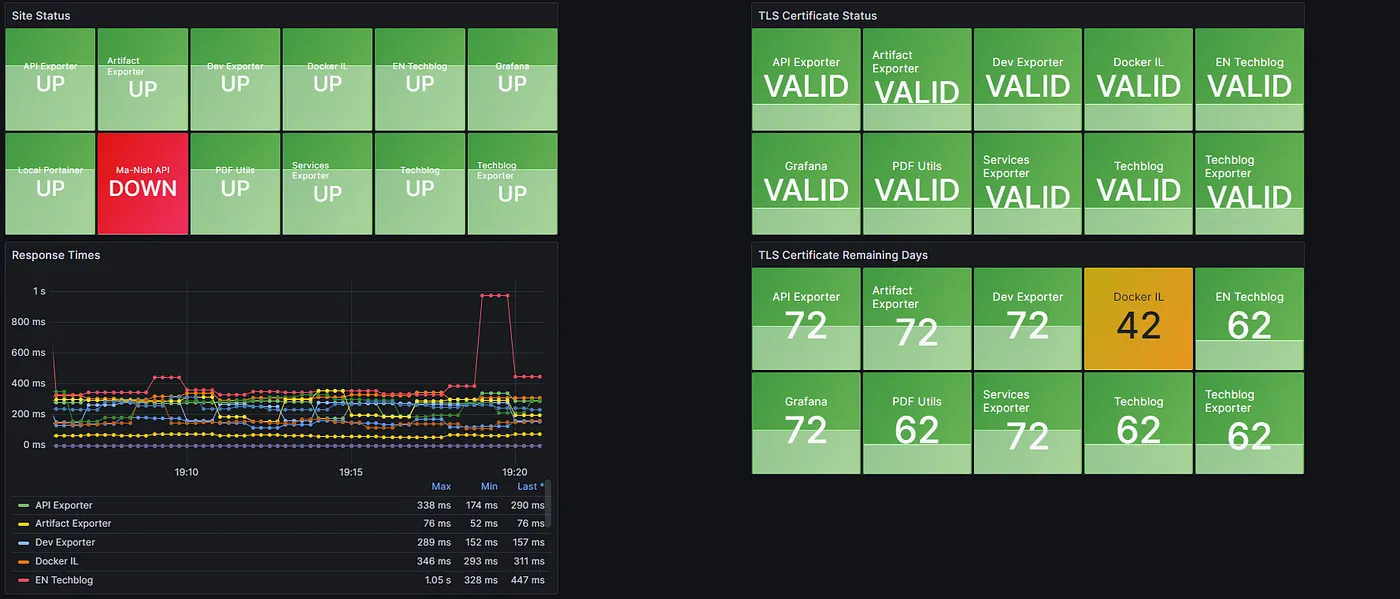

Uptime Kuma — Metrics

Reference
