EKS Ingress with Traefik, Cert-Manager, and Cross-Account Route 53 using IAM Role and Service Account

Table of Contents

1. 🎯 Objective
2. 📋 Prerequisites
   • Cert-Manager
   • Traefik
3. Cross-Account Setup Overview
   • Account-B Setup: Trusted Role for Account-A
   • Grab Hosted Zone ID from Route53 in Account B
   • Account-A Setup: Role and Service Account
4. Cert-Manager Setup
5. ClusterIssuer and Certificate Configuration
6. Traefik Setup
7. Deploy and Test an Application
8. Final Note

🎯 Objective

When managing workloads in Kubernetes (EKS), securing communication with HTTPS is crucial. This blog demonstrates how to set up Traefik as an ingress controller and integrate it with Cert-Manager for TLS certificate management. We also cover cross-account Route 53 integration for DNS-01 validation using AWS IAM roles and service accounts.

---

📋 Prerequisites

1) A Kubernetes 1.22+ 2) Helm version 3.9+ is installed 3) Two Aws Accounts a) Account A having EKS Cluster running b) Account B having Route53 hosted 4) Public Hosted zone in Route53

🌟 Cert-Manager

Cert-Manager is an open-source tool for managing TLS certificates in Kubernetes. It automates tasks such as:

• Certificate creation
• Renewal
• Domain validation

By handling certificates automatically, Cert-Manager ensures secure communication between Kubernetes services and external systems.

---

🌟 Traefik

Traefik is a Kubernetes-native ingress controller that simplifies managing traffic into your cluster. It supports features like:

• Automatic certificate management (via Cert-Manager)
• Load balancing
• HTTPS termination

Traefik makes ingress configuration more efficient and user-friendly while ensuring secure traffic flow.

---

Cross-Account Setup Overview

We set up EKS in Account A and Route 53 DNS zones in Account B. Cert-Manager in Account A needs permissions to validate domains in Account B via DNS-01 challenges.

Account-B Setup: Trusted Role for Account-A

Create an AWS IAM role of type Trusted entity in Account B that allows Account A to assume it and manage DNS records.

Role Policy for Account B:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": "route53:GetChange",
      "Resource": "arn:aws:route53:::change/*"
    },
    {
      "Effect": "Allow",
      "Action": [
        "route53:ChangeResourceRecordSets",
        "route53:ListResourceRecordSets"
      ],
      "Resource": "arn:aws:route53:::hostedzone/<YOUR_SPECIFIC_HOSTED_ZONE_ID>"
    },
    {
      "Effect": "Allow",
      "Action": "route53:ListHostedZonesByName",
      "Resource": "*"
    }
  ]
}

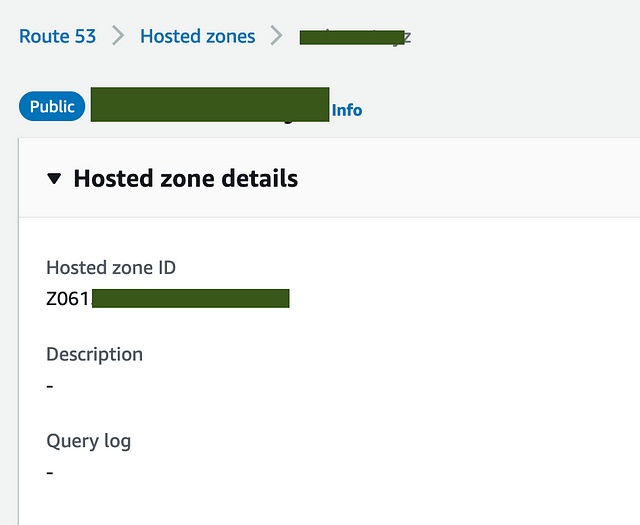

Grab Hosted Zone ID from Route53 in Account B

—

Account-A Setup: Role and Service Account

In Account A, create an IAM role that Cert-Manager will assume.

IAM Trusted Entities Policy for Account A:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "Federated": "arn:aws:iam::$account_id:oidc-provider/$oidc_provider"
      },
      "Action": "sts:AssumeRoleWithWebIdentity",
      "Condition": {
        "StringEquals": {
          "$oidc_provider:aud": "sts.amazonaws.com",
          "$oidc_provider:sub": "system:serviceaccount:cert-manager:cert-manager"
        }
      }
    }
  ]
}

IAM Inline Policy for Account A:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": "sts:AssumeRole",
      "Resource": "<Account-B-Role-arn>"
    }
  ]
}

---

Cert-Manager Setup

Install Cert-Manager using Helm:

helm repo add jetstack https://charts.jetstack.io --force-update
helm install cert-manager jetstack/cert-manager --namespace cert-manager --create-namespace --set crds.enabled=true

Update the cert-manager service account to use the IAM role, to do that add the annotation:

kubectl edit sa cert-manager -n cert-manager

annotations:
  eks.amazonaws.com/role-arn: <Account-A role arn>

---

ClusterIssuer and Certificate Configuration

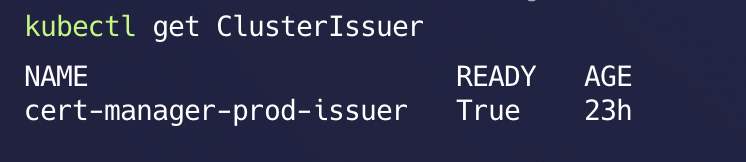

ClusterIssuer Manifest:

apiVersion: cert-manager.io/v1
kind: ClusterIssuer
metadata:
  name: cert-manager-prod-issuer
spec:
  acme:
    email: <Email_ID>
    server: https://acme-v02.api.letsencrypt.org/directory # For Prod use
    privateKeySecretRef:
      name: letsencrypt-prod
    solvers:
    - selector:
        dnsZones:
          - "dev.example.in"
      dns01:
        route53:
          region: us-east-1
          hostedZoneID: <hostedZoneID>
          role: <Account-B role arn>

📝 This is for production grade environment certificates. which are real https certificates.

If you want to use certificate for testing environment you can change server: https://acme-staging-v02.api.letsencrypt.org/directory

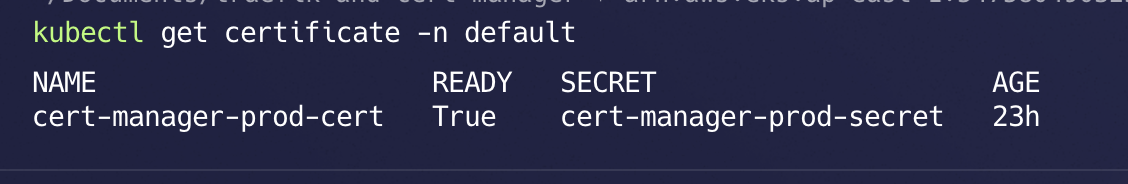

Certificate Manifest:

apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
  name: cert-manager-prod-cert
  namespace: default
spec:
  secretName: cert-manager-prod-secret
  issuerRef:
    name: cert-manager-prod-issuer
    kind: ClusterIssuer
  dnsNames:
    - "*.dev.example.in"
    - "dev.example.in"

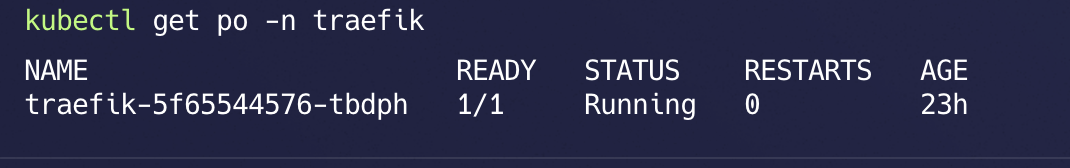

Traefik Setup

Install Traefik with Helm:

helm repo add traefik https://traefik.github.io/charts --force-update
kubectl create ns traefik
helm install traefik traefik/traefik -n traefik

---

Deploy and Test an Application

Nginx Deployment Manifest:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx
  namespace: default
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx
        image: nginx:latest
        ports:
        - containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
  name: nginx-service
  namespace: default
spec:
  type: ClusterIP
  selector:
    app: nginx
  ports:
    - protocol: TCP
      port: 80
      targetPort: 80

IngressRoute Manifest:

apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
  name: nginx-ingress-route
  namespace: kong
  annotations:
    kubernetes.io/ingress.class: traefik
    kubernetes.io/tls-acme: "true"
    certmanager.k8s.io/cluster-issuer: letsencrypt-prod
spec:
  entryPoints:
    - websecure
  routes:
  - match: Host('nginx.dev.example.in')
    kind: Rule
    services:
    - name: nginx-service
      port: 80
  tls:
    secretName: cert-manager-prod-secret

---

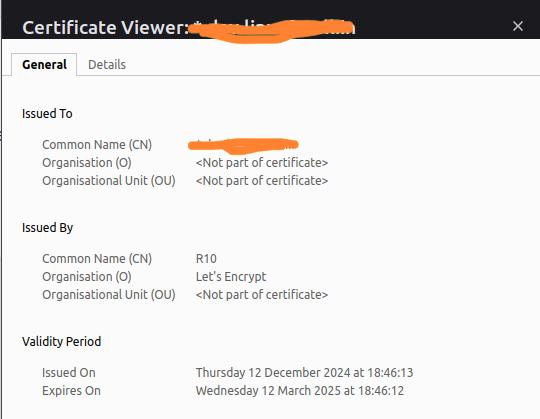

Final Note

Ensure that a CNAME record for nginx.dev.example.com points to your Traefik load balancer’s DNS in Route 53.

With this setup, Traefik and Cert-Manager efficiently manage ingress traffic and certificates, ensuring secure communication for your Kubernetes workloads.
