Kubernetes NodePort and iptables rules
While there are many excellent posts explaining Kubernetes networking and how services work, I struggled to find a practical starting point to analyze how a NodePort service actually operates under the hood. In this post, I’ll break down the iptables rules managed by kube-proxy to route traffic for a NodePort service.
what I have learned by digging a little deeper into the iptables rules for NodePort type services and share answers to the following questions I came across while working on kube-proxy:
-
What happens when a non-kubernetes process starts using a port that’s allocated as a NodePort to a service?
-
Does the service endpoint continue to route traffic to pods if kube-proxy (configured in
iptables mode) process dies on the node?
Background
Kubernetes allows a few ways to expose applications to the world outside the kubernetes cluster through the concept of services (ClusterIP, NodePort, LoadBalancer, ExternalName). In our setup at work, we expose a few of our apps through NodePort type services. Also, kube-proxy is the kubernetes component that powers the services concept and we run it in iptables mode (this is the default mode).
A little about NodePort
If you set the type field to NodePort, the Kubernetes control plane allocates a port from a range specified by
--service-node-port-rangeflag (default: 30000-32767). Each node proxies that port (the same port number on every Node) into your Service.
This means that if we have a service with NodePort 30000, a request to <kubernetes-node-ip>:30000 will get routed to our app. Under normal circumstances kube-proxy binds and listens on all NodePorts to ensure these ports stay reserved and no other processes can use them.
err…a non-kubernetes is using the NodePort!!
Sometime back at work, one of our kubernetes nodes was rebooted and as it was added back to the cluster, we saw errors in kube-proxy logs - bind: address already in use:
I0707 20:57:38.648179 1 proxier.go:701] Syncing iptables rules
E0707 20:57:38.679876 1 proxier.go:1072] can't open "nodePort for default/nginx:" (:30450/tcp), skipping this nodePort: listen tcp :30450: bind: address already in use
This error meant that a port allocated as a NodePort to a service was already in use by another process. We found out that there was a non-kubernetes process using this NodePort as a client port to connect to a remote server. This happened due of a race condition post node reboot. This other process started using the NodePort before kube-proxy could bind and listen on the port to reserve it.
Will the NodePort on this node still route traffic to the pods?
This was the immediate question that popped up in our heads as the NodePort allocated to a service was now being used by a non-kubernetes process. kube-proxy creates iptables rules in the PREROUTING chain in nat table.
Because of these rules, the answer to the above question is - Yes! Traffic sent to the NodePort on this node will still correctly be routed to the backend pods it targets.
The NodePort would also continue to work if another process was listening on the port as a server and not just using it as a client. Though, would our HTTP GET requests reach this server? More on this later.
Kube-proxy iptables rules
In iptables mode, kube-proxy creates iptables rules for kubernetes services which ensure that the request to the service gets routed (and load balanced) to the appropriate pods.
These iptables rules also help answer the second question mentioned above. As long as these iptables rules exist, requests to services will get routed to the appropriate pods even if kube-proxy process dies on the node. Endpoints for new services won ’t work from this node, however, since kube-proxy process won ’t create the iptables rules for it.
Rules in the PREROUTING chain
there are rules in the PREROUTING chain of the nat table for kubernetes services. As per
rules in the PREROUTING chain are the first ones to be consulted as a packet enters the linux kernel’s networking stack.

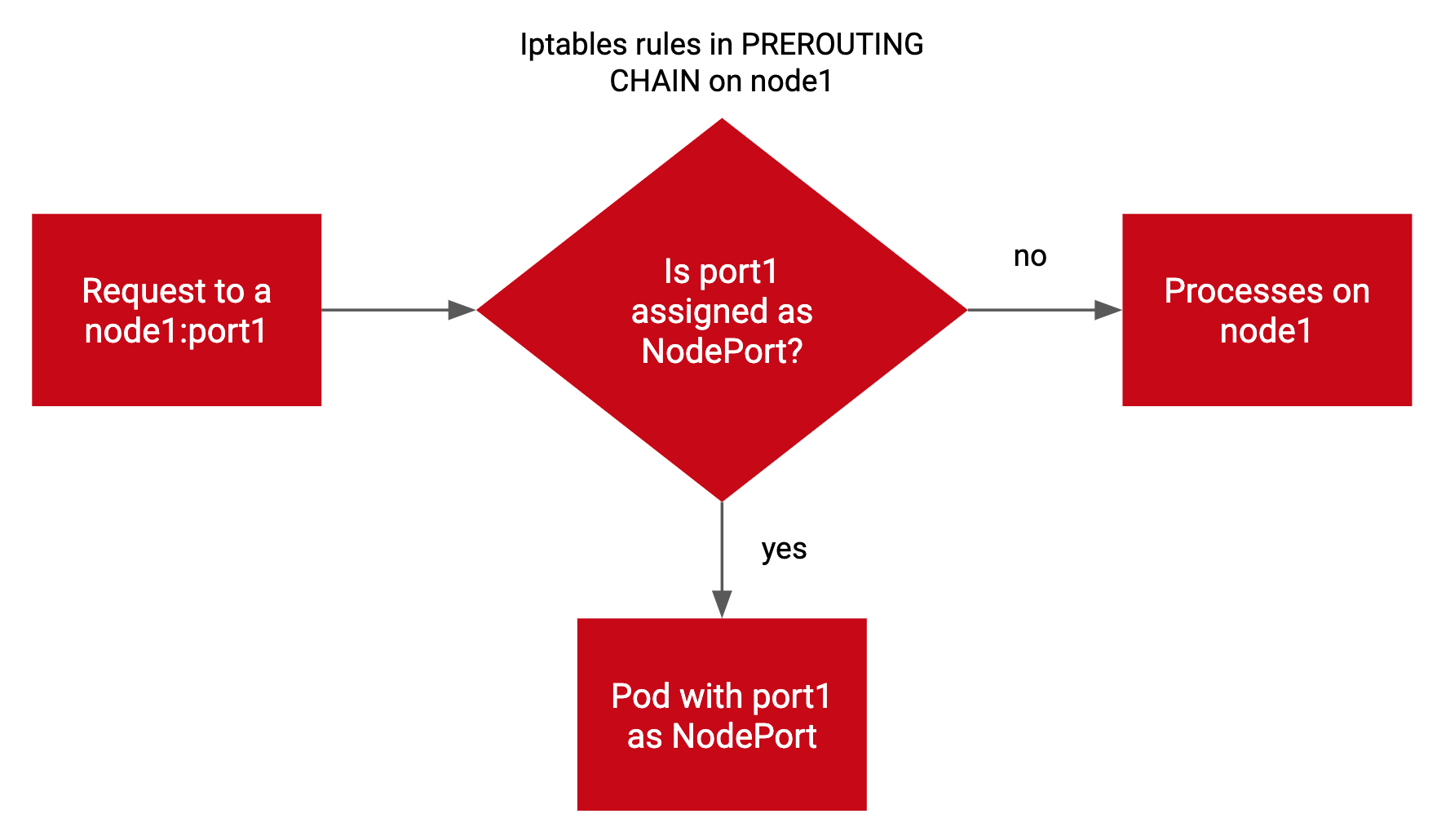

Rules created by kube-proxy in the PREROUTING chain help determine if the packet is meant for a local socket on the node or if it should be forwarded to a pod. It is these rules that ensure that the request to <kubernetes-node-ip>:<NodePort> continue to get routed to pods even if the NodePort is in use by another process.
I walk through a setup that reproduces the above scenario and examine the iptables rules that make this work.
Setting up a Kubernetes cluster
I created a kubernetes cluster.
Creating pods and a NodePort Service
apiVersion: v1
kind: Service
metadata:
name: nginx
namespace: default
spec:
type: NodePort
ports:
- port: 80
name: http
targetPort: 80
selector:
app: nginx
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: nginx
namespace: default
spec:
selector:
matchLabels:
app: nginx
template:
metadata:
labels:
app: nginx
spec:
containers:
- image: nginx
name: nginx
ports:
- containerPort: 80
name: http
$ kubectl get po -l app=nginx --show-labels -o wide NAME
READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES LABELS nginx-5bc759676c-x9bwg 1/1 Running 0 24d 10.244.0.11 eks-nodepool1-22391620-vmss000000 <none ><none >app=nginx,pod-template-hash=5bc759676c
$ kubectl get svc nginx -o wide NAME
TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR
nginx NodePort 10.0.237.3 <none >80:30450/TCP 24d app=nginx
$ root@lazarus-master:~# curl localhost:30450 -I
HTTP/1.1 200 OK
Server: nginx/1.27.4
Date: Fri, 28 Mar 2025 06:31:55 GMT
Content-Type: text/html
Content-Length: 615
Last-Modified: Wed, 05 Feb 2025 11:06:32 GMT
Connection: keep-alive
ETag: "67a34638-267"
Accept-Ranges: bytes
root@lazarus-master:~# curl -ssL localhost:30450 |grep -i title
<title>Welcome to nginx!</title>
Examining iptables rules for a NodePort service
SSH into an EKS worker node directly.
Let ’s look at the iptables rules for the nginx service.
After ssh ’ing into the kubernetes worker node, let ’s look at the PREROUTING chain in the nat table. (PREROUTING chain exists in raw , nat and mangle tables, however, kube-proxy only creates PREROUTING chain rules in nat table)
$ iptables -t nat -L -n -v
$ sudo iptables -t nat -L PREROUTING | column -t
Chain PREROUTING (policy ACCEPT)
target prot opt source destination
KUBE-SERVICES all -- anywhere anywhere /* kubernetes service portals */
DOCKER all -- anywhere anywhere ADDRTYPE match dst-type LOCAL
There ’s a
KUBE-SERVICESchain in the target that ’s created by kube-proxy. Let ’s list the rules in that chain.
sudo iptables -t nat -L KUBE-SERVICES -n | column -t
Chain KUBE-SERVICES (2 references)
target prot opt source destination
KUBE-MARK-MASQ tcp -- !10.244.0.0/16 10.0.202.188 /* kube-system/healthmodel-replicaset-service: cluster IP */ tcp dpt:25227
KUBE-SVC-KA44REDDIFNWY4W2 tcp -- 0.0.0.0/0 10.0.202.188 /* kube-system/healthmodel-replicaset-service: cluster IP */ tcp dpt:25227
KUBE-MARK-MASQ udp -- !10.244.0.0/16 10.0.0.10 /* kube-system/kube-dns:dns cluster IP */ udp dpt:53
KUBE-SVC-TCOU7JCQXEZGVUNU udp -- 0.0.0.0/0 10.0.0.10 /* kube-system/kube-dns:dns cluster IP */ udp dpt:53
KUBE-MARK-MASQ tcp -- !10.244.0.0/16 10.0.0.10 /* kube-system/kube-dns:dns-tcp cluster IP */ tcp dpt:53
KUBE-SVC-ERIFXISQEP7F7OF4 tcp -- 0.0.0.0/0 10.0.0.10 /* kube-system/kube-dns:dns-tcp cluster IP */ tcp dpt:53
KUBE-MARK-MASQ tcp -- !10.244.0.0/16 10.0.190.160 /* kube-system/kubernetes-dashboard: cluster IP */ tcp dpt:80
KUBE-SVC-XGLOHA7QRQ3V22RZ tcp -- 0.0.0.0/0 10.0.190.160 /* kube-system/kubernetes-dashboard: cluster IP */ tcp dpt:80
KUBE-MARK-MASQ tcp -- !10.244.0.0/16 10.0.195.6 /* kube-system/metrics-server: cluster IP */ tcp dpt:443
KUBE-SVC-LC5QY66VUV2HJ6WZ tcp -- 0.0.0.0/0 10.0.195.6 /* kube-system/metrics-server: cluster IP */ tcp dpt:443
KUBE-MARK-MASQ tcp -- !10.244.0.0/16 10.0.129.119 /* default/azure-vote-back: cluster IP */ tcp dpt:6379
KUBE-SVC-JQ4VBJ2YWO22DDZW tcp -- 0.0.0.0/0 10.0.129.119 /* default/azure-vote-back: cluster IP */ tcp dpt:6379
KUBE-MARK-MASQ tcp -- !10.244.0.0/16 10.0.237.3 /* default/nginx: cluster IP */ tcp dpt:80
KUBE-SVC-GHSLGKVXVBRM4GZX tcp -- 0.0.0.0/0 10.0.237.3 /* default/nginx: cluster IP */ tcp dpt:80
KUBE-MARK-MASQ tcp -- !10.244.0.0/16 10.0.0.1 /* default/kubernetes:https cluster IP */ tcp dpt:443
KUBE-SVC-NPX46M4PTMTKRN6Y tcp -- 0.0.0.0/0 10.0.0.1 /* default/kubernetes:https cluster IP */ tcp dpt:443
KUBE-NODEPORTS all -- 0.0.0.0/0 0.0.0.0/0 /* kubernetes service nodeports; NOTE: this must be the last rule in this chain */ ADDRTYPE match dst-type LOCAL
The last terget in the KUBE-SERVICES chain is the KUBE-NODEPORTS chain. Since the service we created is of type NodePort , let ’s list the rules in KUBE-NODEPORTS chain.
$ sudo iptables -t nat -L KUBE-NODEPORTS -n | column -t
Chain KUBE-NODEPORTS (1 references)
target prot opt source destination
KUBE-MARK-MASQ tcp -- 0.0.0.0/0 0.0.0.0/0 /* default/nginx: */ tcp dpt:30450
KUBE-SVC-GHSLGKVXVBRM4GZX tcp -- 0.0.0.0/0 0.0.0.0/0 /* default/nginx: */ tcp dpt:30450
We can see that the above targets are for packets destined to our NodePort 30450 . The comments also show the namespace/pod name - default/nginx . For requests originating from outside the cluster and destined to our app running as a pod, the KUBE-MARK-MASQ rule marks the packet to be altered later in the POSTROUTING chain to use SNAT (source network address translation) to rewrite the source IP as the node IP (so that other hosts outside the pod network can reply back).
Since KUBE-MARK-MASQ target is to MASQUERADE packets later, let ’s follow the KUBE-SVC-GHSLGKVXVBRM4GZX chain to further examine our service.
$ sudo iptables -t nat -L KUBE-SVC-GHSLGKVXVBRM4GZX -n | column -t
Chain KUBE-SVC-GHSLGKVXVBRM4GZX (2 references)
target prot opt source destination
KUBE-SEP-QXDNOBCCLOXLV7LV all -- 0.0.0.0/0 0.0.0.0/0
$ sudo iptables -t nat -L KUBE-SEP-QXDNOBCCLOXLV7LV -n | column -t
Chain KUBE-SEP-QXDNOBCCLOXLV7LV (1 references)
target prot opt source destination
KUBE-MARK-MASQ all -- 10.244.0.11 0.0.0.0/0
DNAT tcp -- 0.0.0.0/0 0.0.0.0/0 tcp to:10.244.0.11:80
Here we see the DNAT (Destination Network Address Translation) target is used to rewrite the destination of the packet destined to port 30450 to our pod 10.244.0.11:80 . We can verify the podIP and containerPort of our pod as follows:
$ kubectl get po nginx-5bc759676c-x9bwg -o json | jq -r '[.status.podIP, .spec.containers[0].ports[0].containerPort | tostring] | join(":")'
10.244.0.11:80
Verify kube-proxy is listening on NodePort
Under normal circumstances kube-proxy binds and listens on all NodePorts to ensure these ports stay reserved and no other processes can use them. We can verify this on the above kubernetes node:
$ sudo lsof -i:30450
COMMAND PID USER FD TYPE DEVICE SIZE/OFF NODE NAME
hyperkube 11558 root 9u IPv6 95841832 0t0 TCP *:30450 (LISTEN)
$ ps -aef | grep -v grep | grep 11558
root 11558 11539 0 Jul02 ? 00:06:37 /hyperkube kube-proxy --kubeconfig=/var/lib/kubelet/kubeconfig --cluster-cidr=10.244.0.0/16 --feature-gates=ExperimentalCriticalPodAnnotation=true --v=3
kube-proxy is listening on NodePort 30450 .
Create a non-kubernetes process use the NodePort
Now let ’s kill kube-proxy process and start a server that listens on this NodePort instead.
$ kill -9 11558
$ python -m SimpleHTTPServer 30450 &
[1] 123578
$ sudo lsof -i:30450
COMMAND PID USER FD TYPE DEVICE SIZE/OFF NODE NAME
python 123578 ssm 3u IPv4 95854834 0t0 TCP *:30450 (LISTEN)
$ ps -aef | grep -v grep | grep 123578
eksus+ 123578 85107 0 00:49 pts/5 00:00:00 python -m SimpleHTTPServer 30450
Where will the requests to NodePort be routed - pod or the non-kubernetes process?
While the python process is listening on port 30450 , also allocated as a NodePort to our kubernetes service, the iptables rules in the PREROUTING chain will route all requests to port 30450 to our pod. We can verify this as below:
$ curl -I -XGET localhost:30450
HTTP/1.1 200 OK
Server: nginx/1.13.7
Date: Wed, 08 Jul 2020 00:53:09 GMT
Content-Type: text/html; charset=utf-8
Content-Length: 950
Connection: keep-alive
As we send a GET request to port 30450 , we receive a response from an nginx server hosting Azure Voting App , like we saw when kube-proxy was listening on port 30450 .
$ curl -sSL localhost:30450 | grep title
<title>Welcome to nginx!</title>
Summary
Following Packet Flow Through iptables
1. PREROUTING Chain:
- When a request arrives at
NodeIP:30007, it follows this path:
The request hits iptables PREROUTING, where a rule sends it to KUBE-SERVICES.
2. DNAT Rule (Destination NAT):
- The
KUBE-NODEPORTSchain appliesDNAT(destination network address translation), mapping traffic from30007to the actual pod’sClusterIP:8080.
3. POSTROUTING & MASQUERADE:
- If the request originated outside the cluster,
MASQUERADEensures the source IP is rewritten, so responses return properly.
