EKS scaling with Karpenter

Table of Contents

1. 📋 Setting up Karpenter on Existing EKS Cluster 🪵🪚
2. 🎯 Prerequisites
3. 🎯 Prepration
   • Export all of this Environment
   • We will create two IAM roles
   • Tag Subnets
   • Tag Security Groups
   • Update aws-auth on your cluster with this script
4. Installation
   • 1. Export this variable
   • 2. Generate karpenter.yaml
   • karpenter Config
   • Deploy karpenter
   • Create NodePool & EC2NodeClass
5. Cluster Auto Scaler
6. Check karpenter logs
7. Troubleshot

Setting up Karpenter on Existing EKS Cluster 🪵🪚

Prerequisites

1. AWS CLI configured with appropriate credentials

2. kubectl installed

3. An existing EKS cluster

4. Helm

Prepration

1. Export all of this Environment

KARPENTER_NAMESPACE=karpenter
CLUSTER_NAME=<your-cluster-name>
AWS_PARTITION="aws"
AWS_REGION="$(aws configure list | grep region | tr -s " " | cut -d" " -f3)"
OIDC_ENDPOINT="$(aws eks describe-cluster --name "${CLUSTER_NAME}" \
    --query "cluster.identity.oidc.issuer" --output text)"
AWS_ACCOUNT_ID=$(aws sts get-caller-identity --query 'Account' \
    --output text)
K8S_VERSION=1.28
ARM_AMI_ID="$(aws ssm get-parameter --name /aws/service/eks/optimized-ami/${K8S_VERSION}/amazon-linux-2-arm64/recommended/image_id --query Parameter.Value --output text)"
AMD_AMI_ID="$(aws ssm get-parameter --name /aws/service/eks/optimized-ami/${K8S_VERSION}/amazon-linux-2/recommended/image_id --query Parameter.Value --output text)"
GPU_AMI_ID="$(aws ssm get-parameter --name /aws/service/eks/optimized-ami/${K8S_VERSION}/amazon-linux-2-gpu/recommended/image_id --query Parameter.Value --output text)"

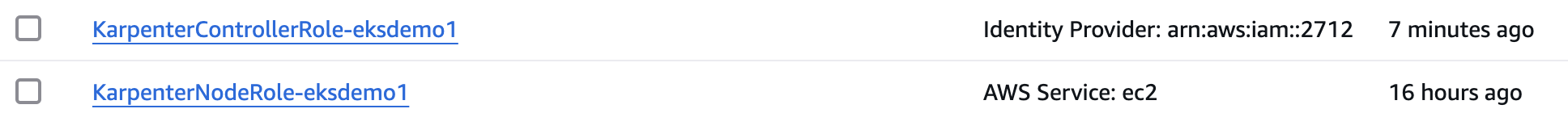

2. We will create two IAM roles:

• KarpenterNodeRole-{your-cluster-name} (For the nodes which are going to be created by karpeneter)
• KarpenterControllerRole-{your-cluster-name} (For creating the nodes in the cluster)

KarpenterNodeRole-{your-cluster-name}

echo '{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "Service": "ec2.amazonaws.com"
            },
            "Action": "sts:AssumeRole"
        }
    ]
}' > node-trust-policy.json

aws iam create-role --role-name "KarpenterNodeRole-${CLUSTER_NAME}" \
    --assume-role-policy-document file://node-trust-policy.json

aws iam attach-role-policy --role-name "KarpenterNodeRole-${CLUSTER_NAME}" \
    --policy-arn "arn:${AWS_PARTITION}:iam::aws:policy/AmazonEKSWorkerNodePolicy"

aws iam attach-role-policy --role-name "KarpenterNodeRole-${CLUSTER_NAME}" \
    --policy-arn "arn:${AWS_PARTITION}:iam::aws:policy/AmazonEKS_CNI_Policy"

aws iam attach-role-policy --role-name "KarpenterNodeRole-${CLUSTER_NAME}" \
    --policy-arn "arn:${AWS_PARTITION}:iam::aws:policy/AmazonEC2ContainerRegistryReadOnly"

aws iam attach-role-policy --role-name "KarpenterNodeRole-${CLUSTER_NAME}" \
    --policy-arn "arn:${AWS_PARTITION}:iam::aws:policy/AmazonSSMManagedInstanceCore"

KarpenterControllerRole-{your-cluster-name}

cat << EOF > controller-trust-policy.json
{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "Federated": "arn:${AWS_PARTITION}:iam::${AWS_ACCOUNT_ID}:oidc-provider/${OIDC_ENDPOINT#*//}"
            },
            "Action": "sts:AssumeRoleWithWebIdentity",
            "Condition": {
                "StringEquals": {
                    "${OIDC_ENDPOINT#*//}:aud": "sts.amazonaws.com",
                    "${OIDC_ENDPOINT#*//}:sub": "system:serviceaccount:${KARPENTER_NAMESPACE}:karpenter"
                }
            }
        }
    ]
}
EOF

aws iam create-role --role-name "KarpenterControllerRole-${CLUSTER_NAME}" \
    --assume-role-policy-document file://controller-trust-policy.json

cat << EOF > controller-policy.json
{
    "Statement": [
        {
            "Action": [
                "ssm:GetParameter",
                "ec2:DescribeImages",
                "ec2:RunInstances",
                "ec2:DescribeSubnets",
                "ec2:DescribeSecurityGroups",
                "ec2:DescribeLaunchTemplates",
                "ec2:DescribeInstances",
                "ec2:DescribeInstanceTypes",
                "ec2:DescribeInstanceTypeOfferings",
                "ec2:DescribeAvailabilityZones",
                "ec2:DeleteLaunchTemplate",
                "ec2:CreateTags",
                "ec2:CreateLaunchTemplate",
                "ec2:CreateFleet",
                "ec2:DescribeSpotPriceHistory",
                "pricing:GetProducts"
            ],
            "Effect": "Allow",
            "Resource": "*",
            "Sid": "Karpenter"
        },
        {
            "Action": "ec2:TerminateInstances",
            "Condition": {
                "StringLike": {
                    "ec2:ResourceTag/karpenter.sh/nodepool": "*"
                }
            },
            "Effect": "Allow",
            "Resource": "*",
            "Sid": "ConditionalEC2Termination"
        },
        {
            "Effect": "Allow",
            "Action": "iam:PassRole",
            "Resource": "arn:${AWS_PARTITION}:iam::${AWS_ACCOUNT_ID}:role/KarpenterNodeRole-${CLUSTER_NAME}",
            "Sid": "PassNodeIAMRole"
        },
        {
            "Effect": "Allow",
            "Action": "eks:DescribeCluster",
            "Resource": "arn:${AWS_PARTITION}:eks:${AWS_REGION}:${AWS_ACCOUNT_ID}:cluster/${CLUSTER_NAME}",
            "Sid": "EKSClusterEndpointLookup"
        },
        {
            "Sid": "AllowScopedInstanceProfileCreationActions",
            "Effect": "Allow",
            "Resource": "*",
            "Action": [
            "iam:CreateInstanceProfile"
            ],
            "Condition": {
            "StringEquals": {
                "aws:RequestTag/kubernetes.io/cluster/${CLUSTER_NAME}": "owned",
                "aws:RequestTag/topology.kubernetes.io/region": "${AWS_REGION}"
            },
            "StringLike": {
                "aws:RequestTag/karpenter.k8s.aws/ec2nodeclass": "*"
            }
            }
        },
        {
            "Sid": "AllowScopedInstanceProfileTagActions",
            "Effect": "Allow",
            "Resource": "*",
            "Action": [
            "iam:TagInstanceProfile"
            ],
            "Condition": {
            "StringEquals": {
                "aws:ResourceTag/kubernetes.io/cluster/${CLUSTER_NAME}": "owned",
                "aws:ResourceTag/topology.kubernetes.io/region": "${AWS_REGION}",
                "aws:RequestTag/kubernetes.io/cluster/${CLUSTER_NAME}": "owned",
                "aws:RequestTag/topology.kubernetes.io/region": "${AWS_REGION}"
            },
            "StringLike": {
                "aws:ResourceTag/karpenter.k8s.aws/ec2nodeclass": "*",
                "aws:RequestTag/karpenter.k8s.aws/ec2nodeclass": "*"
            }
            }
        },
        {
            "Sid": "AllowScopedInstanceProfileActions",
            "Effect": "Allow",
            "Resource": "*",
            "Action": [
            "iam:AddRoleToInstanceProfile",
            "iam:RemoveRoleFromInstanceProfile",
            "iam:DeleteInstanceProfile"
            ],
            "Condition": {
            "StringEquals": {
                "aws:ResourceTag/kubernetes.io/cluster/${CLUSTER_NAME}": "owned",
                "aws:ResourceTag/topology.kubernetes.io/region": "${AWS_REGION}"
            },
            "StringLike": {
                "aws:ResourceTag/karpenter.k8s.aws/ec2nodeclass": "*"
            }
            }
        },
        {
            "Sid": "AllowInstanceProfileReadActions",
            "Effect": "Allow",
            "Resource": "*",
            "Action": "iam:GetInstanceProfile"
        }
    ],
    "Version": "2012-10-17"
}
EOF

aws iam put-role-policy --role-name "KarpenterControllerRole-${CLUSTER_NAME}" \
    --policy-name "KarpenterControllerPolicy-${CLUSTER_NAME}" \
    --policy-document file://controller-policy.json

3. Tag Subnets

Create new tags for Subnet based on NodeGroup that used on your existing Cluster using this script:

for NODEGROUP in $(aws eks list-nodegroups --cluster-name "${CLUSTER_NAME}" --query 'nodegroups' --output text); do
    aws ec2 create-tags \
        --tags "Key=karpenter.sh/discovery,Value=${CLUSTER_NAME}" \
        --resources $(aws eks describe-nodegroup --cluster-name "${CLUSTER_NAME}" \
        --nodegroup-name "${NODEGROUP}" --query 'nodegroup.subnets' --output text )
done

This script will do a loop:

a. Get NodeGroup name

b. Get the subnet from that NodeGroup

c. Create tags karpenter.sh/discovery= to the subnet

It will repeat to all of the NodeGroup within your EKS cluster.

4. Tag Security Groups

Create new tags for Security Group that used on your existing cluster using this script:

Create tags karpenter.sh/discovery=<your-cluster-name> to the Security Group

SECURITY_GROUPS=$(aws eks describe-cluster \
    --name "${CLUSTER_NAME}" --query "cluster.resourcesVpcConfig.clusterSecurityGroupId" --output text)

aws ec2 create-tags \
    --tags "Key=karpenter.sh/discovery,Value=${CLUSTER_NAME}" \
    --resources "${SECURITY_GROUPS}"

5. Update aws-auth on your cluster with this script

kubectl edit configmap aws-auth -n kube-system

Add this section & update , let the `` like that

- groups:
  - system:bootstrappers
  - system:nodes
  rolearn: arn:aws:iam::<your_aws_account_id>:role/KarpenterNodeRole-eksdemo1
  username: system:node:

🪵🪵🪵🪵🪵🪵🪵🪵🪵🪵🪵🪵🪵🪵🪵🪵🪵🪵🪵🪵🪵🪵🪵🪵

Installation

1. Export this variable

export KARPENTER_VERSION="1.3.3"

2. Generate karpenter.yaml

Run this helm script to generate karpenter.yaml file

helm template karpenter oci://public.ecr.aws/karpenter/karpenter --version "${KARPENTER_VERSION}" --namespace "${KARPENTER_NAMESPACE}" \
    --set "settings.clusterName=${CLUSTER_NAME}" \
    --set "serviceAccount.annotations.eks\.amazonaws\.com/role-arn=arn:${AWS_PARTITION}:iam::${AWS_ACCOUNT_ID}:role/KarpenterControllerRole-${CLUSTER_NAME}" \
    --set controller.resources.requests.cpu=1 \
    --set controller.resources.requests.memory=1Gi \
    --set controller.resources.limits.cpu=1 \
    --set controller.resources.limits.memory=1Gi > karpenter.yaml

You can change the Request and Limits for the CPU and Memory, but the minimum is 1. Both for CPU and Memory. This CPU and Memory resources will run for the Karpenter pods.

Pay attention to this section

- set "serviceAccount.annotations.eks\.amazonaws\.com/role-arn=arn:${AWS_PARTITION}:iam::${AWS_ACCOUNT_ID}:role/KarpenterControllerRole-${CLUSTER_NAME}"

Make sure on the end you type KarpenterControllerRole not the NodeRole.

when executing this helm template command if you get 🚨 Helm OCI Registry Authentication Issue as mentioned below,

error getting credentials - err: exec: "docker-credential-desktop": executable file not found in $PATH

Solution:-

aws ecr-public get-login-password --region us-east-1 | helm registry login --username AWS --password-stdin public.ecr.aws

This authenticates Helm to pull images from AWS Public ECR.

3. karpenter Config

Now we have the karpenter.yaml file

Inside the karpenter.yaml file, there a section that need to be edited. Look for NodeAffinity and add this part to the yaml.

affinity:
  nodeAffinity:
    requiredDuringSchedulingIgnoredDuringExecution:
      nodeSelectorTerms:
      - matchExpressions:
        - key: karpenter.sh/nodepool
          operator: DoesNotExist
        - key: eks.amazonaws.com/nodegroup
          operator: In
          values:
          - <your-node-group-name>
  podAntiAffinity:
    requiredDuringSchedulingIgnoredDuringExecution:
      - topologyKey: "kubernetes.io/hostname"

Fill the your-node-group-name with the NodeGroup name that you want karpenter run on.

For example, i have 1 NodeGroup named frontend.

• I want Karpenter run on the frontend, so i fill that value with frontend.

• If you want the karpenter run on two of the NodeGroup, just add another NodeGroup name below the first one, like this:

- key: eks.amazonaws.com/nodegroup
  operator: In
  values:
  - frontend
  - <second-node-group>

You can use this command t see the labels mentioned above

kubectl get no --show-labels

4. Deploy karpenter

After the karpenter.yaml ready, you just need to apply it. Use this script to create a namespace for the karpenter, install another karpenter dependencies, and also install the karpenter.yaml:

kubectl create namespace "${KARPENTER_NAMESPACE}" || true
kubectl create -f \
    "https://raw.githubusercontent.com/aws/karpenter-provider-aws/v${KARPENTER_VERSION}/pkg/apis/crds/karpenter.sh_nodepools.yaml"
kubectl create -f \
    "https://raw.githubusercontent.com/aws/karpenter-provider-aws/v${KARPENTER_VERSION}/pkg/apis/crds/karpenter.k8s.aws_ec2nodeclasses.yaml"
kubectl create -f \
    "https://raw.githubusercontent.com/aws/karpenter-provider-aws/v${KARPENTER_VERSION}/pkg/apis/crds/karpenter.sh_nodeclaims.yaml"
kubectl apply -f karpenter.yaml

5. Create NodePool & EC2NodeClass

Karpenter uses two primary custom resources to control its behavior:

• NodePool: Defines what kind of nodes Karpenter will create

• EC2NodeClass: Specifies AWS-specific configuration for the nodes

Understanding NodePool and EC2NodeClass

The NodePool resource defines instance types, CPU architecture, capacity types, availability zones, and more.

The EC2NodeClass defines AWS-specific configuration like AMI family, subnet selection, and security groups.

After the karpenter apply finish without any error, create NodePool with this script:

cat <<EOF | envsubst | kubectl apply -f -
# NodePool example
apiVersion: karpenter.sh/v1
kind: NodePool
metadata:
  name: default-x86
spec:
  template:
    spec:
      nodeClassRef:
        kind: EC2NodeClass
        name: default
        group: karpenter.k8s.aws
      requirements:
        - key: kubernetes.io/arch
          operator: In
          values: ["amd64"]
        - key: kubernetes.io/os
          operator: In
          values: ["linux"]
        - key: karpenter.sh/capacity-type
          operator: In
          values: ["on-demand", "spot"]
        - key: node.kubernetes.io/instance-type
          operator: In
          values: ["t2.micro", "t2.small", "t2.medium", "t2.large"]
  limits:
    cpu: "1000"
    memory: "1000Gi"
  disruption:
    consolidationPolicy: WhenEmptyOrUnderutilized
    consolidateAfter: 30s
---
# EC2NodeClass example
apiVersion: karpenter.k8s.aws/v1
kind: EC2NodeClass
metadata:
  name: default
spec:
  amiFamily: AL2
  subnetSelectorTerms:
    - tags:
        karpenter.sh/discovery: eksdemo1
  securityGroupSelectorTerms:
    - tags:
        karpenter.sh/discovery: eksdemo1
  amiSelectorTerms:
    - id: "ami-0a991ffa1379f681b"
    - id: "ami-03fcb7c9c1ca36b4d"
  role: arn:aws:iam::xxxxxxxxx:role/KarpenterNodeRole-eksdemo1
  blockDeviceMappings:
    - deviceName: /dev/xvda
      ebs:
        volumeSize: 10Gi
        volumeType: gp3
        deleteOnTermination: true
        encrypted: true
EOF

This script will create:

• NodePool

• EC2NodeClass

Now you have karpenter running on your existing cluster

Karpenter Node will not joining your NodeGroup. It will be like a standalone Node within your cluster.

Cluster Auto Scaler

Remove Cluster Auto Scaler (if available) using this script:

kubectl scale deploy/cluster-autoscaler -n kube-system --replicas=0

Check karpenter logs

kubectl logs -f -n karpenter -c controller -l app.kubernetes.io/name=karpenter

Troubleshot

EC2NodeClass status is crucial!

Based on what we implement using above tutorial, we apply Kind:EC2NodeClass on the kubernetes Cluster. This EC2NodeClass will look for a tags we have created before on our Security Group and Subnet.

If you created tags on the wrong Security Group or Subnet, EC2NodeClass status will be change to Failed to resolve security groups . Just make sure to create the Tags on the correct resource. Use kubectl describe ec2nodeclass default to check for the status. Below is the example of correct status:
